Key Battery, Removing And Installing, Electronic Ignition Lock: Removing

-- Remove the emergency key.

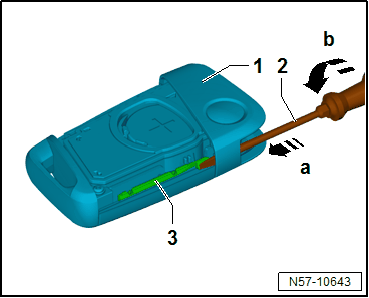

-- Guide a small screwdriver -2- into the now free opening in direction of -arrow a-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the screwdriver -2- in direction of -arrow b- so that the lock -3- opens.

-- Pry out the cover.

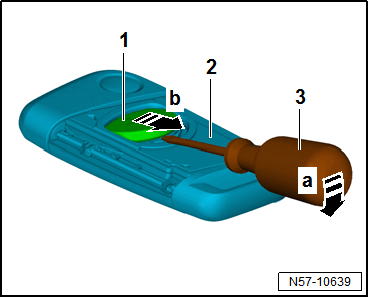

-- Pry out the battery -1- with a small screwdriver -3- in direction of -arrow a-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the battery -1- from the battery compartment -2- in direction of -arrow b-.
