Key Battery, Removing And Installing, Manual Ignition Lock: Installing

NOTE:

Before installing the battery, one of the buttons must be pushed.

This resets the radio-frequency unit, and it can now recognize the new battery.

Note the polarity and installation position when installing the battery. The positive terminal is marked.

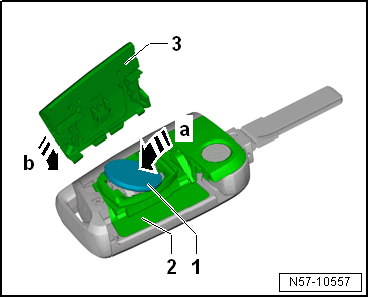

-- Insert the battery -1- by pressing it lightly in direction of -arrow a- into the battery compartment -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the battery compartment cover -3- and the radio-frequency unit together in direction of -arrow b-.

-- The ignition key must now be synchronized.

Ignition Key, Synchronizing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

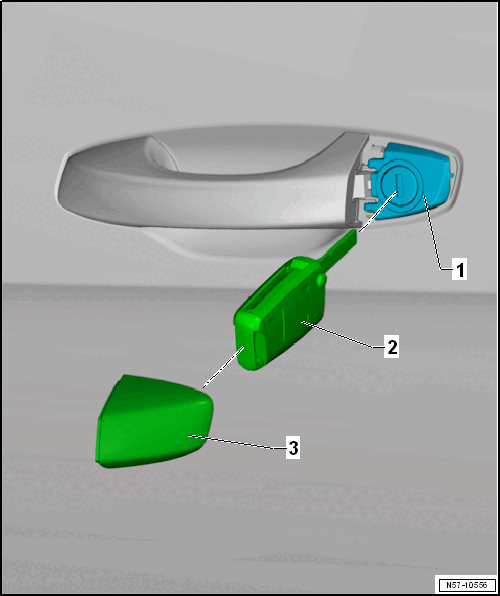

-- Remove the lock cylinder cap -3-. Refer to CAP WITH LOCK CYLINDER, REMOVING AND INSTALLING .

-- Hold the ignition key -2- at the lock cylinder -1- and push the "open" button.

-- Unlock the vehicle using the ignition key -2- within one minute via the lock cylinder -1-.
