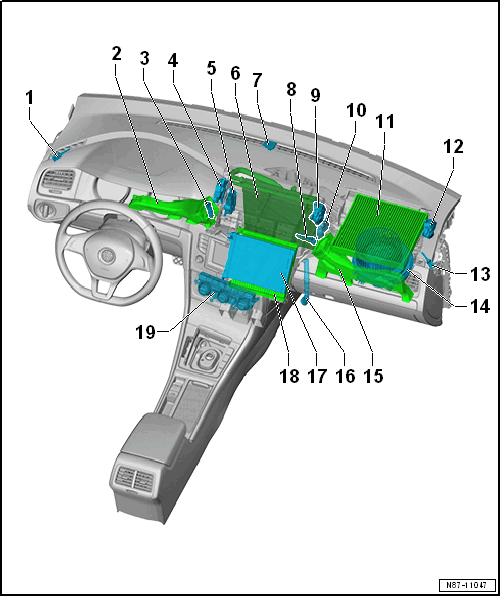

Component Location Overview - Components In Front Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Vent Temperature Sensor -G150-
   • Only for vehicles with Climatronic.
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
2. Driver Side Footwell Vent
   • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
   • Removing and Installing. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
3. Footwell Vent Temperature Sensor -G192-
   • Only for vehicles with Climatronic.
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to Footwell Vent Temperature Sensor -G192-, REMOVING AND INSTALLING .
4. Front Air Distribution Door Motor -V426- or Air Distribution Door Motor -V428-
   • Component Location Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
   • Removing and Installing. Refer to Air Distribution Door Motor -V428-, REMOVING AND INSTALLING .
5. Left Temperature Control Door Motor -V158- or Temperature Control Door Motor -V68-
   • Component Location Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
   • Removing and Installing. Refer to Temperature Control Door Motor -V68-, REMOVING AND INSTALLING .
6. Evaporator
   • Only for vehicles with an A/C system.
   • Removing and Installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
7. Sunlight Photo Sensor -G107-
   • Only for vehicles with Climatronic.
   • Removing and Installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
8. Evaporator Temperature Sensor -G308-
   • Only for vehicles with an A/C system.
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Removing and Installing. Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
9. Defroster Door Motor -V107-
   • Only for vehicles with Climatronic.
   • Component Location Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
   • Removing and Installing. Refer to Defroster Door Motor .
10. Right Temperature Control Door Motor -V159-
    • Only for vehicles with Climatronic.
    • Component Location Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
    • Removing and Installing. Refer to Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING .
11. Dust and Pollen Filter
    • Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
12. Recirculation Door Motor -V113- or Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
    • Component Location Overview. Refer to OVERVIEW - HEATER AND A/C UNIT .
    • Recirculation Door Motor -V113-, Removing and Installing. Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING .
    • Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, Removing and Installing. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
13. Right Vent Temperature Sensor -G151-
    • Only for vehicles with Climatronic.
    • Checking. Refer to Vehicle Diagnostic Tester.
    • Removing and Installing. Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING .
14. Fresh Air Blower -V2-
    • Removing and Installing. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
15. Front Passenger Side Footwell Vent
    • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
    • Removing and Installing. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
16. Condensation Water Drain Hose
    • Only for vehicles with an A/C system.
    • Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
    • Removing and Installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
17. Auxiliary Heater Heating Element -Z35- with Auxiliary Heater Control Module -J604-
    • Checking. Refer to Auxiliary Heater Heating Element -Z35-, CHECKING .
    • Removing and Installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
18. Heater Core
    • Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
19. Display Control Head
    • Removing and Installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
