Transmission Control Module, Removing And Installing: Installing

-- Connect the connector to the control module and lock it.

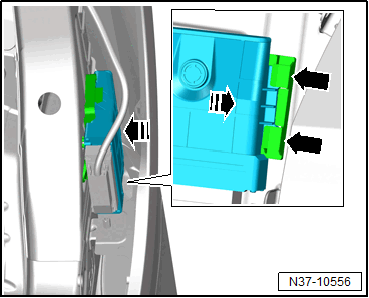

-- Insert the control module into the tabs on the bracket in direction of -arrows- and lock on the retaining tab.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
