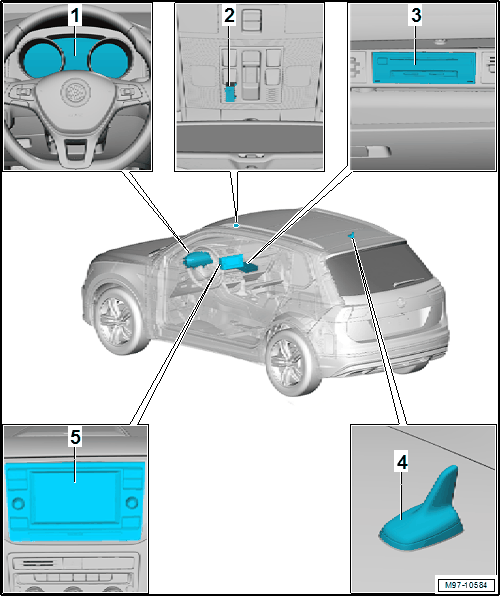

COMPONENT LOCATION OVERVIEW - MOBILE ONLINE SERVICES, VEHICLES WITHOUT Control Module for Emergency Call Module and Communication Unit -J949- (PR NUMBER EL3)

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to OVERVIEW - INSTRUMENT CLUSTER / INSTRUMENT CLUSTER -KX2-, REMOVING AND INSTALLING .
Telephone Microphone -R38-
- In the Front Interior Lamp -WX1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Roof Antenna -RX5-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
