Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING, RHD: Removing
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the instrument panel.

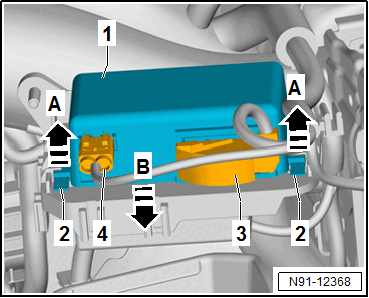

-- Disconnect the connectors -3 and 4-.
-- Push the locking tab -2- in the direction of the -arrow A- at the same time remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- in the direction of the -arrow B-.
