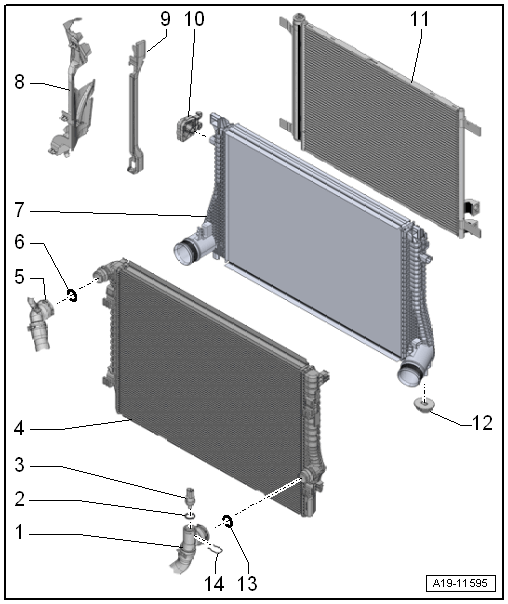

Overview - Radiator: Notes
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Figure.
- O-Ring
- Always replace
- Coat with coolant
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Figure.
- O-Ring
- Replace if damaged
- Coat with coolant
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Air Duct
- Air Duct
- Radiator Mount
- Condenser
- Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Rubber Bushing
- For the charge air cooler
- O-Ring
- Replace if damaged
- Coat with coolant
- Clip
- For the Engine Coolant Temperature Sensor on Radiator Outlet -G83-
