A/C Compressor, Removing And Installing On Bracket: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER . .

NOTE:

The ribbed belt is not completely removed, but rather just removed from the A/C compressor belt pulley.

-- Release the tension on the ribbed belt. Refer to CYLINDER BLOCK, BELT PULLEY SIDE (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA) , CYLINDER BLOCK, BELT PULLEY SIDE (CZCA, CZDA, CZTA) , CYLINDER BLOCK, BELT PULLEY SIDE (CBPA, CKJA) , CYLINDER BLOCK, BELT PULLEY SIDE (CNLA, CRJA) and CYLINDER BLOCK, BELT PULLEY SIDE (CPLA, CPPA, CPKA, CPRA) .

-- Remove the ribbed belt from the A/C compressor belt pulley.

NOTE:

If only the sub-assembly bracket is planned to be removed, then the refrigerant circuit stays "sealed".

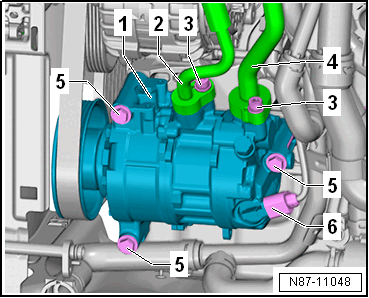

-- Disconnect the connector -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -5- and remove the A/C compressor -1-.

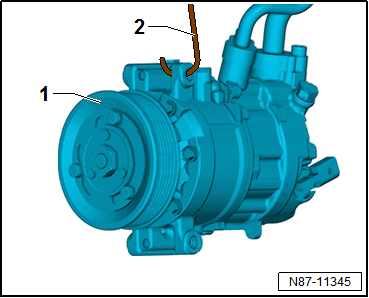

-- Attach the A/C compressor -1- to the body using a suitable tool, for example welding wire -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
