Heater And A/C Unit, Disassembling And Assembling: Disassembling

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

-- Remove the air distribution housing. Refer to AIR DISTRIBUTION HOUSING, REMOVING AND INSTALLING .

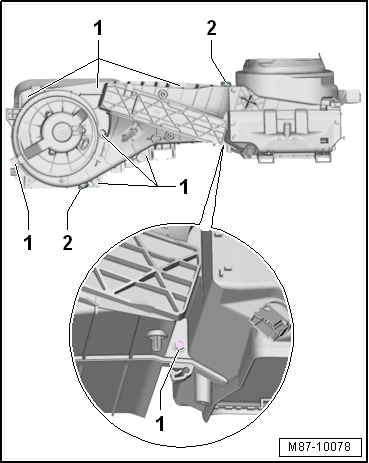

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clamps -2-.

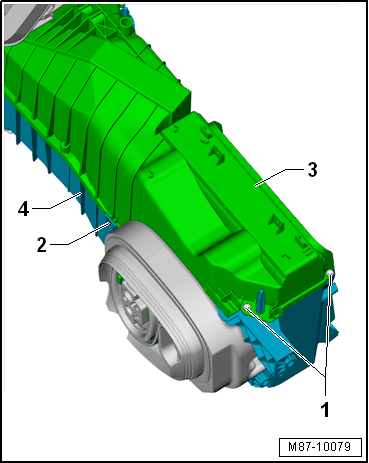

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clamp -2-.

-- Remove the heater and A/C unit upper section -3- from the lower section -4-.
