Overview - Heater And A/C Unit, Electric-Manual Climate Control System
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

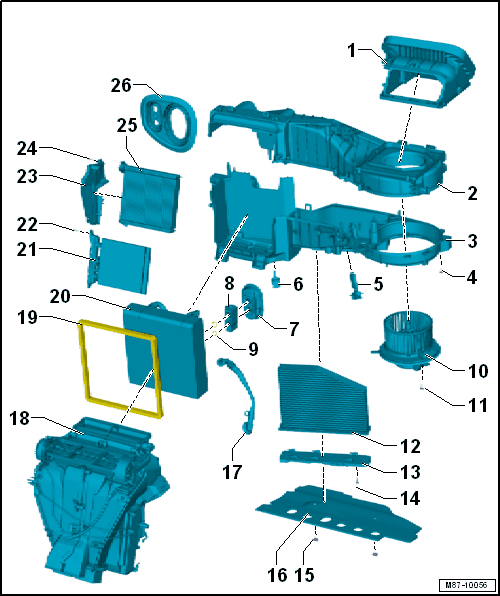

- Air Intake Duct
- Removing and installing. Refer to AIR INTAKE DUCT, REMOVING AND INSTALLING .
- Housing
- Upper Section
- Heater and A/C Unit, Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Heater and A/C Unit, Disassembling and Assembling. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Housing
- Lower Section
- Heater and A/C Unit, Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Heater and A/C Unit, Disassembling and Assembling. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Bolts
- 1.5 Nm
- Fresh Air Blower Series Resistor with Fuse -N24-
- Removing and installing. Refer to Fresh Air Blower Series Resistor with Fuse -N24-, REMOVING AND INSTALLING .
- Evaporator Temperature Sensor -G308-
- Removing and installing. Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Expansion Valve
- Removing and installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Seals
- Replace after removing.
- Coat with refrigerant oil before installing.
- Quantity: 2
- Fresh Air Blower -V2-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Dust and Pollen Filter
- Removing and installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Cover
- For dust and pollen filter
- Bolt
- 1 Nm
- Bolts
- 0.3 Nm
- Quantity: 2
- Partition
- Removing and installing. Refer to PARTITION, REMOVING AND INSTALLING .
- Condensation Water Drain
- Checking using the Vehicle Diagnostic Tester. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Removing and installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Air Distribution Housing
- Removing and installing. Refer to AIR DISTRIBUTION HOUSING, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Check the foam seals for damage and that they are correctly bonded
- Evaporator
- Removing and installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
- Checking using the Vehicle Diagnostic Tester. Refer to Auxiliary Heater Heating Element -Z35-, CHECKING .
- Removing and installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Bolts
- 2 Nm
- Cover
- Depending on vehicle equipment
- Bolts
- 2 Nm
- Quantity: 4
- Heater Core
- Removing and installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Grommet
