Engine And Transmission, Separating, Vehicles With Manual Transmission

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Procedure

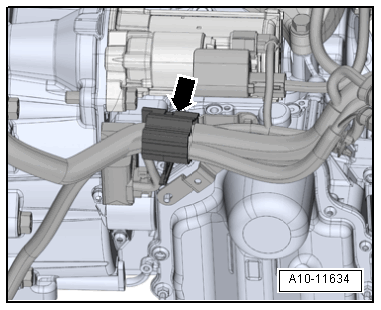

Fig 1: Identifying Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wire on the bracket -arrow-.

-- Remove the bolts -1 and 2- and then remove the starter from the transmission.

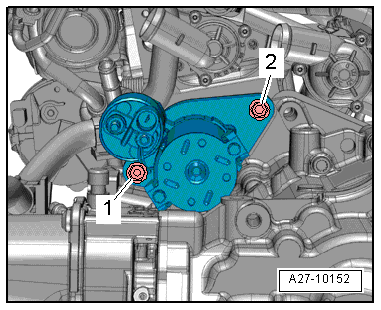

Fig 2: Identifying Starter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wiring harness -1 and 2- from the air duct pipe.

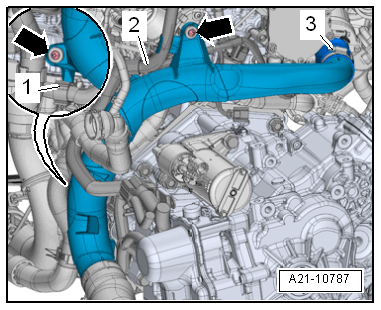

Fig 3: Free Up Wiring Harness From Air Guide Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the screw-type clamp -3-.

-- Remove the bolts -arrows- and remove the air duct pipe.

-- Remove the bolts -arrows- and remove the transmission support.

Fig 4: Identifying Console From Transmission, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the : T40013 on the transmission and close the retainer.

Fig 5: Engaging Workshop Crane VAS 6100 With Additional Hooks 10-222 A/2 At Lifting Tackle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the : VAS6100 on the lifting tackle using the : 10-222A/2 .

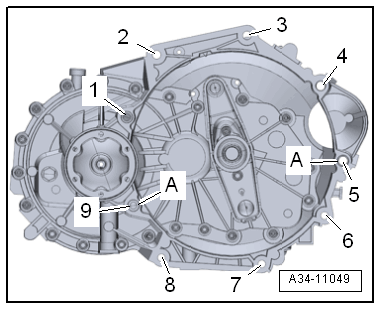

-- Remove the bolts -1, 2, 3, 6, 7, 8 and 9- connecting the transmission to the engine.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Ignore -4, 5 and A-.

-- Remove the transmission from the engine.
