Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

• Engine Sling: 2024A
• Shop Crane: VAS6100
• Engine and Transmission Holder: VAS6095A

Procedure

• The transmission is separated from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

-- Unlock the retaining tab in direction of -arrow- and remove the left engine cover mount -1-.

Fig 1: Identifying Engine Cover Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the right engine cover mount -1-.

Fig 2: Identifying Engine Cover Mount And Locating Bore

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the : 2024A  onto the engine and onto the : VAS6100  .

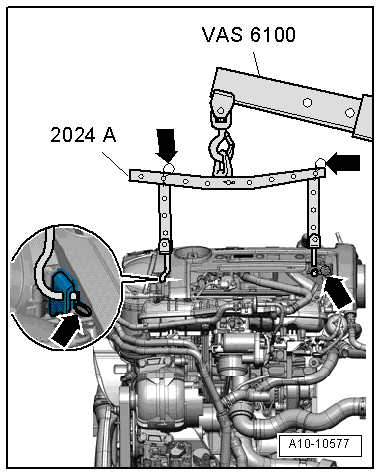

Fig 3: Engine Lifted

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To be aligned to the center of gravity of the engine assembly, the hole rails must be inserted as shown.

-- Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.

-- Lower the engine from the : VAS6931  using the : VAS6100  .

-- Remove the transmission alignment sleeves and fasten the transmission side of the engine on the : VAS6095A  .

Fig 4: Identifying Engine And Transmission Holder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
