Overview - Shift Forks With Reverse Gear Assembly

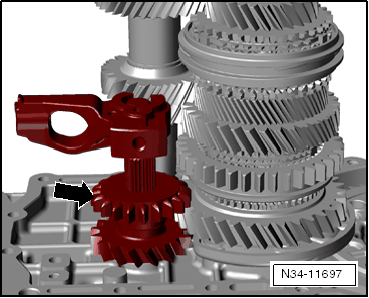

GWWN34-11697Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The -arrow- Points to the Reverse Gear Assembly

NOTE:

The shift fork group does not need to be disassembled to remove and install shift segments, lock washers and angular contact ball bearings.

Shift Forks, Servicing. Refer to SHIFT FORKS, SERVICING .

Fig 1: Exploded View Of 5th Gear Shift Fork
GWWN34-1702Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 5th/6th Gear Shift Segment
    • Identification. Refer to Figure.
    • The shift segment must still rotate easily after the lock washer is installed.
  2. Lock Washer
    • Replace after removing
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
  3. 5th/6th Gear Shift Fork
  4. Bolt
  5. 5th/6th Gear Shift Jaw
  6. Angular Contact Ball Bearing
    • Removing. Refer to Figure.
    • Bearing Inner Race, Installing in Outer Race. Refer to Figure.
    • Installing. Refer to Figure.
    • Quantity: 4
  7. Shift Fork Group with Gearshift Rails
  8. 1st/2nd Gear Shift Segment
    • Identification. Refer to Figure.
    • The shift segment must still rotate easily after the lock washer is installed.
  9. 3rd/4th Gear Shift Segment
    • Identification. Refer to Figure.
    • The shift segment must still rotate easily after the lock washer is installed.
  10. Gliding Piece
  11. Spring
  12. Reverse Gear Shift Fork
  13. Support for the Reverse Gear Shift Fork
  14. Circlip
