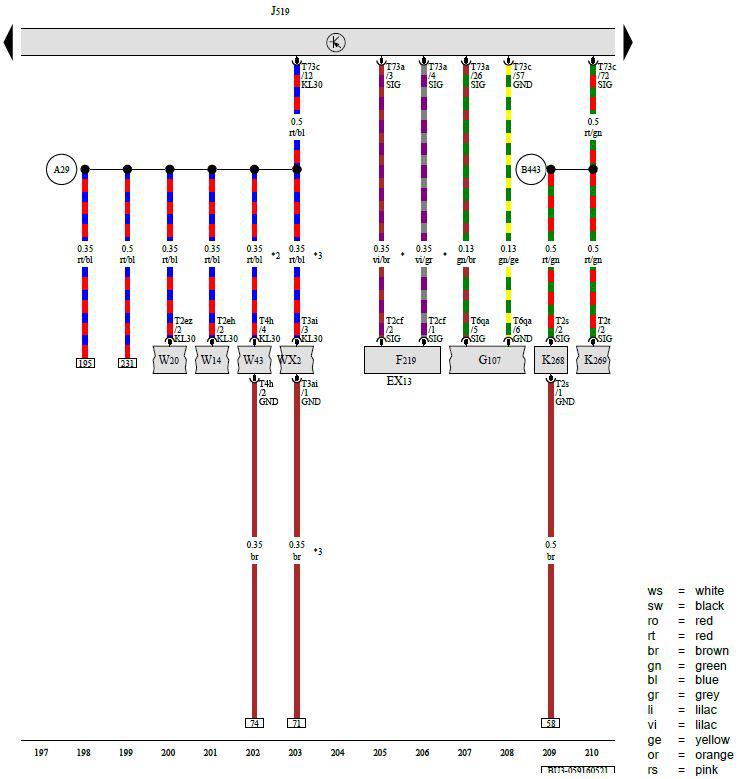

Vehicle Electrical System Control Module (13 Of 17)
EX13 - Fuel Filler Door Unlock
F219 - Fuel Filler Door Central Locking Actuator
G107 - Sunlight Photo Sensor
J519 - Vehicle Electrical System Control Module
K268 - Left Front Footwell Lamp
K269 - Right Front Footwell Lamp
T2cf - 2-Pin Connector
T2eh - 2-Pin Connector
T2ez - 2-Pin Connector
T2s - 2-Pin Connector
T2t - 2-Pin Connector
T3ai - 3-Pin Connector
T4h - 4-Pin Connector
T6qa - 6-Pin Connector
T73a - 73-Pin Connector
T73c - 73-Pin Connector
WX2 - Rear Interior Lamp
W14 - Front Passenger Vanity Mirror Lamp
W20 - Driver Vanity Mirror Lamp
W43 - Rear Interior Lamp
A29 - Interior Lamp Connection (in Instrument Panel Wiring Harness)
B443 - Rear Window Connection 2 (in Main Wiring Harness)
* - Depending on Equipment
*2 - For Vehicles with a Sunroof
*3 - For Vehicles Without a Sliding/Tilting Sunroof
