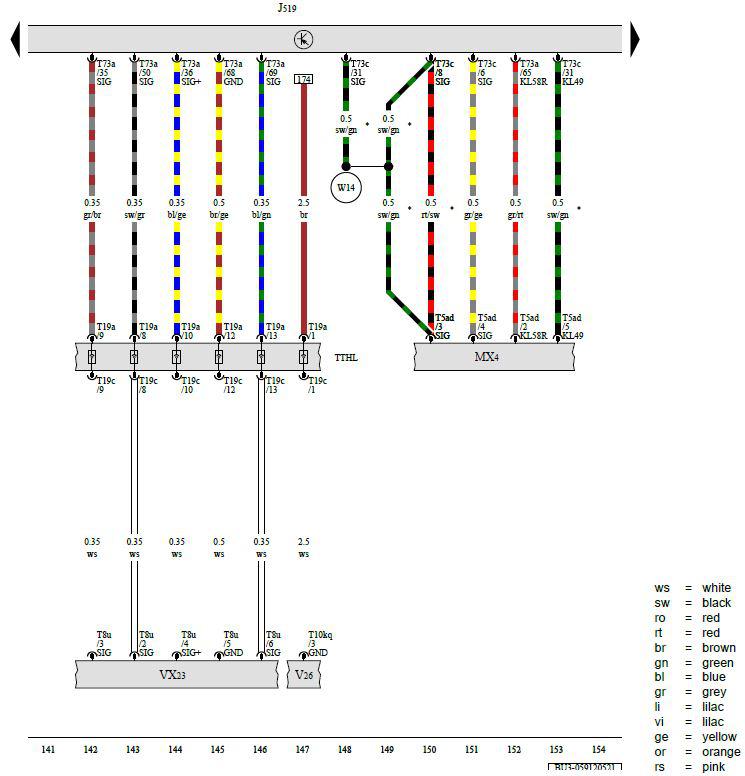

Vehicle Electrical System Control Module (9 Of 17)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519 -  Vehicle Electrical System Control Module

MX4 -  Right Tail Lamp

T5ad -  5-Pin Connector

T8u -  8-Pin Connector

T10kq -  10-Pin Connector

T19a -  19-Pin Connector

T19c -  19-Pin Connector

T73a -  73-Pin Connector

T73c -  73-Pin Connector

TTHL -  Left Rear Door Coupling Point

VX23 -  Left Rear Door Lock Unit

V26 -  Left Rear Window Regulator Motor

W14 -  Connection 58R (in Rear Wiring Harness)

* -  Depending on Equipment
