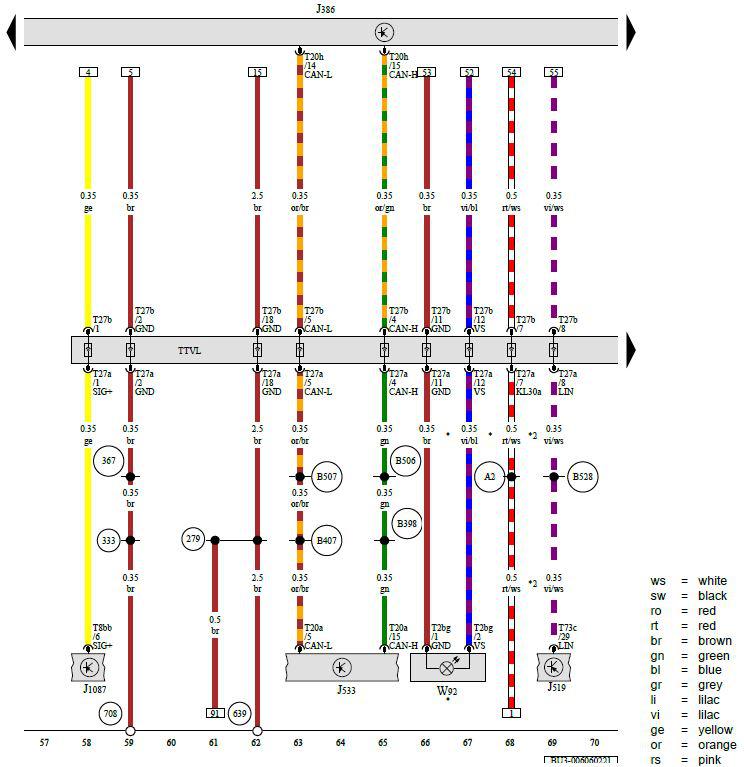

Driver Door Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, Left Front Door Coupling Point, Driver Side Entry Lamp
J386 - Driver Door Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
J1087 - Blind Spot Detection Control Module 2
T2bg - 2-Pin Connector
T8bb - 8-Pin Connector
T20a - 20-Pin Connector
T20h - 20-Pin Connector
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T73c - 73-Pin Connector
TTVL - Left Front Door Coupling Point
W92 - Driver Side Entry Lamp
279 - Ground Connection 5 (in Interior Wiring Harness)
333 - Ground Connection 5 (in Rear Wiring Harness)
367 - Ground Connection 2 (in Main Wiring Harness)
639 - Ground Connection on Left A-Pillar
708 - Ground Connection 2 on Right Rear Chassis Side Member
A2 - Positive Connection (15) (in Instrument Panel Wiring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
B528 - LIN Bus Connection 1 (in Main Wiring Harness)
* - Depending on Equipment
*2 - Diameter Depends on Equipment
