Component Location Overview - Electrical Components, Manual Transmission

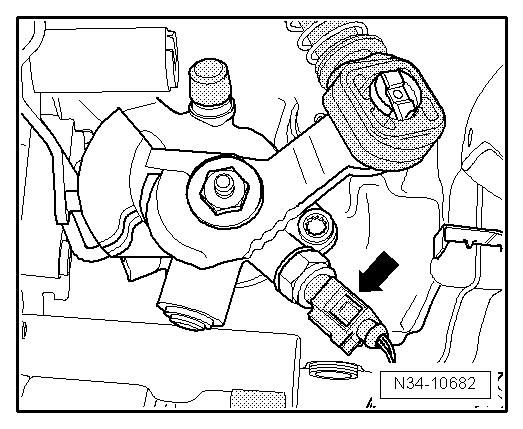

Back-Up Lamp Switch -F4- -arrow-

Fig 1: Back Up Light Switch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: on the shift unit

Back-Up Lamp Switch -F4-, Removing and installing. Refer to OVERVIEW - SHIFT UNIT .

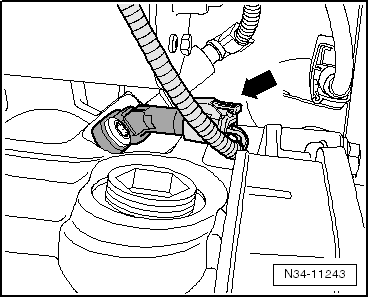

Transmission Neutral Position Sensor -G701- -arrow-

Fig 2: Connect The Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Component location: on top of the oil filler plug.

Transmission Neutral Position Sensor -G701-, Removing and installing. Refer to OVERVIEW - TRANSMISSION HOUSING AND GEARSHIFT MECHANISM .
