Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connector from the Windshield Washer Fluid Level Sensor -G33- -2-.

-- Remove the Windshield Washer Fluid Level Sensor -G33- -2- from the rubber seal on the reservoir.

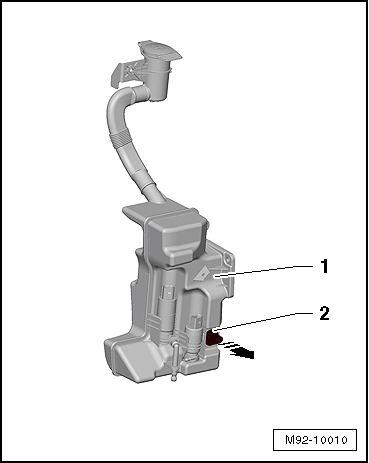

Fig 1: Identifying Windshield Washer Fluid Reservoir And Windshield Washer Fluid Level Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Catch any draining washer fluid in a suitable container.
