Component Location Overview - Central Locking

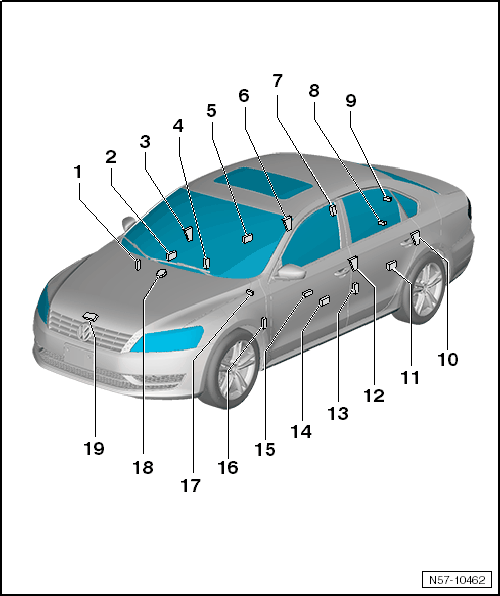

Fig 1: Exploded View Of Central Locking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector Station
- Component location: left A-pillar
- To disconnect the connector, loosen the boot at the pillar
Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Front Passenger Side Door Lock
- The door lock is attached to the door inner panel.
- Electrical central locking system is integrated in door lock.
- Removing and installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Connector Station
- Component location: right B-pillar
- To disconnect the connector, loosen the boot at the pillar
Right Rear Door Control Module -J389-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
Right Rear Door Lock
- The door lock is attached to the door inner panel.
- Electrical central locking system is integrated in door lock.
- Removing and installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Fuel Filler Door Lock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
Rear Lid Latch
- Installed location: on the rear lid
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
Release Button In Rear Lid Handle -E234-
- Installed location: on the rear lid
- Removing and installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
Left Rear Door Lock
- The door lock is attached to the door inner panel.
- Electrical central locking system is integrated in door lock.
- Removing and installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Left Rear Door Control Module -J388-
- Integrated inside the Left Rear Window Regulator Motor -V26-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
Driver Side Door Lock
- The door lock is attached to the door inner panel.
- Electrical central locking system is integrated in door lock.
- Removing and installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Connector Station
- Component location: left B-pillar
- To disconnect the connector, loosen the boot at the pillar
Driver Door Control Module -J386-
- Integrated inside the Driver Window Regulator Motor -V147-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Driver Side Window Regulator Switch Module
- Installed location: inside the driver door trim panel
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Connector Station
- Component location: right A-pillar
- To disconnect the connector, loosen the boot at the pillar
Vehicle Electrical System Control Module -J519-
- Component location: under the instrument panel on the driver side; clipped to the relay panel.
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES
Alarm Horn -H12-
- Optional
- Component location: inside the plenum chamber
- Removing and installing. Refer to ANTI-THEFT ALARM SYSTEM .
Engine Hood Contact Switch -F266-
- Component location: on the latch
- Removing and installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING .
