Overview - Display Control Head, Electric Manual Climate Control System

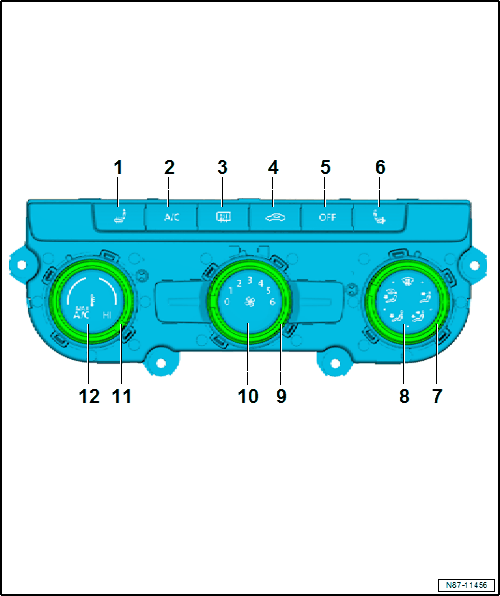

Fig 1: Exploded View Of Isplay Control Head, Electric Manual Climate Control System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Seat Heating Button
- Optional
- The seat heating has three settings. An LED indicates which setting is selected.
- If no LED is illuminated, the seat heating is switched off.
A/C Button
- The A/C compressor is set to almost 0 delivery when the AC button is off.
Rear Window Defogger Button
- The rear window defogger remains on for 4 to 20 minutes, depending on exterior temperature.
Recirculating Air Mode Button
NOTE:
The recirculating air mode turns off during ignition and returns to fresh air mode.
OFF Button for Heating and Air Conditioning ON/OFF
- OFF button is pressed, the A/C does not work. There is no heating or ventilation.
Right Seat Heating Button
- Optional
- The seat heating has three settings. An LED indicates which setting is selected.
- If no LED is illuminated, the seat heating is switched off.
Air Distribution Adjustment Knob
Air Distribution Display
Blower Speed Adjustment Knob
- To the left: decreases the blower speed
- To the right: increases the blower speed
Blower Speed Display
Temperature Adjustment Knob
- To the left: lower the temperature
- To the right: increases the temperature
Temperature Setting Display
