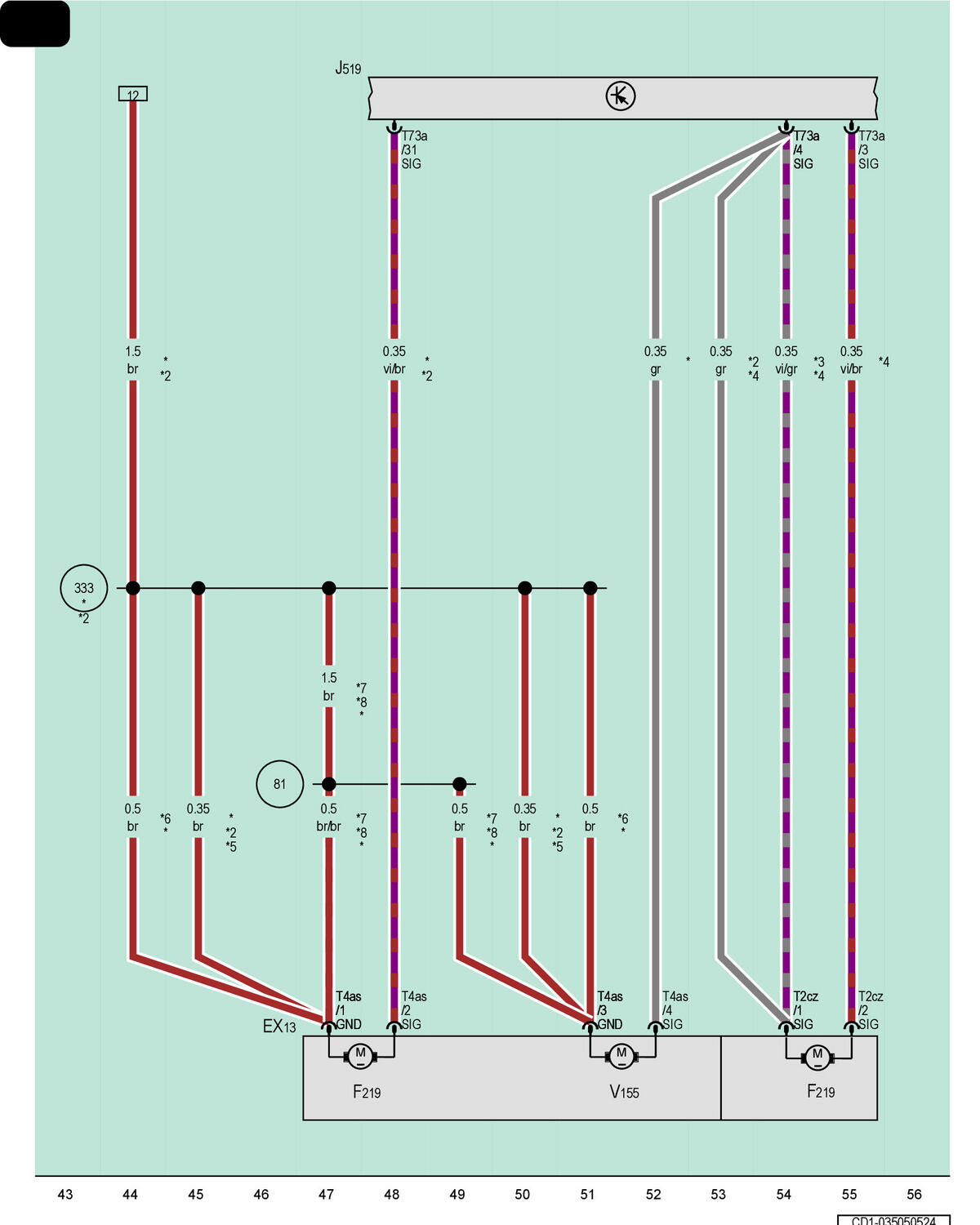

Fuel Filler Door Unlock, Vehicle Electrical System Control Module
EX13
Fuel Filler Door Unlock
F219
Fuel Filler Door Central Locking Actuator
J519
Vehicle Electrical System Control Module
T2cz
2-Pin Connector, Yellow
T4as
4-Pin Connector, Black
T73a
73-Pin Connector, Black
V155
Fuel Filler Door Lock Motor
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
333
Ground Connection 5 (in Rear Wiring Harness)
*
For Vehicles with Hybrid Drive
*2
From July 2020
*3
Through July 2020
*4
For Vehicles Without Hybrid Drive
*5
Through November 2022
*6
From November 2022
*7
For RHD Vehicles
*8
From April 2024

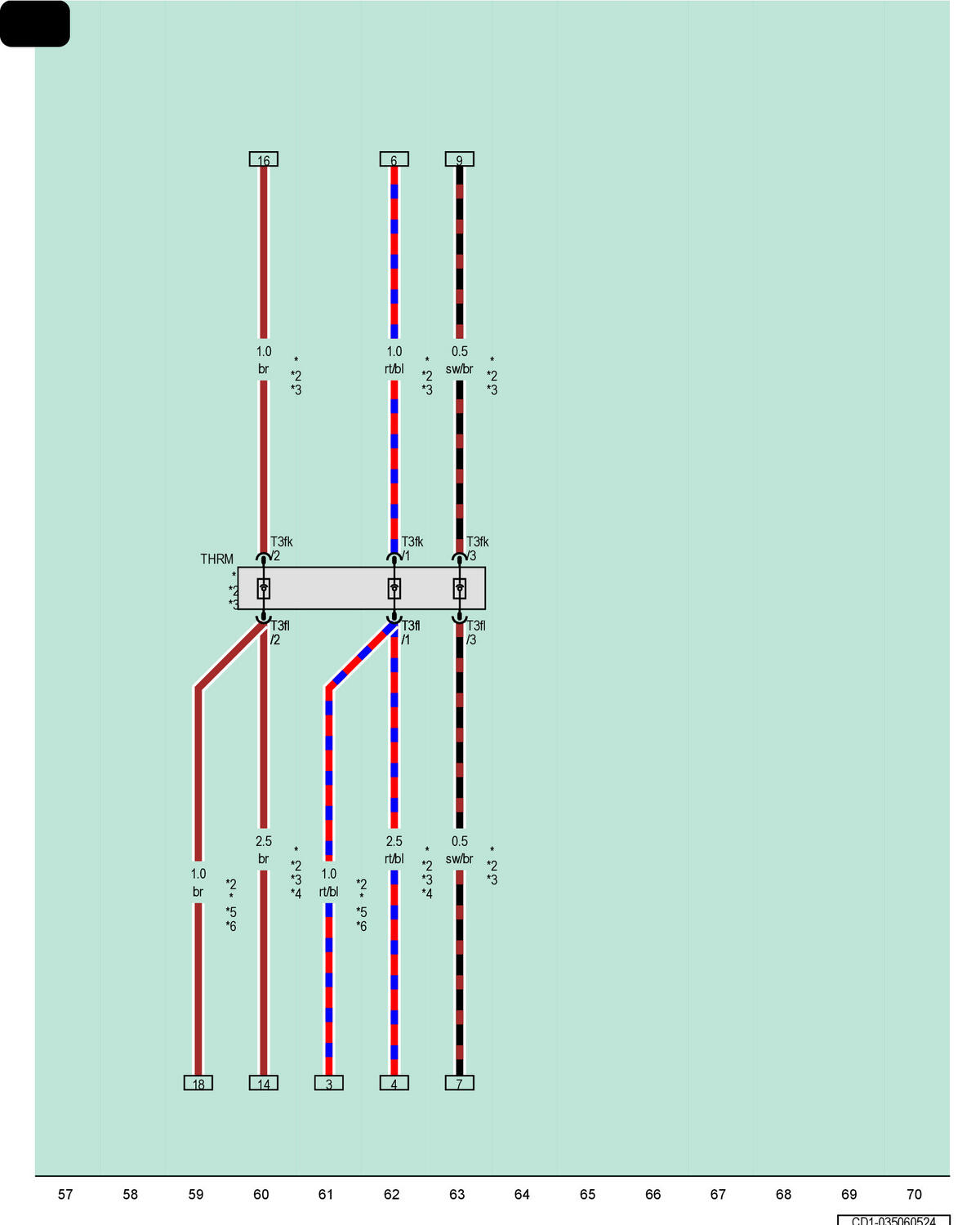

T3fk
3-Pin Connector, Black
T3fl
3-Pin Connector, Black
THRM
Coupling Point in Luggage Compartment, Center
*
For AWD Vehicles
*2
For Vehicles with 2.0L Gasoline Engine
*3
From July 2020
*4
For Vehicles with Top Sport Equipment
*5
From November 2020
*6
For Vehicles Without Top Sport Equipment
