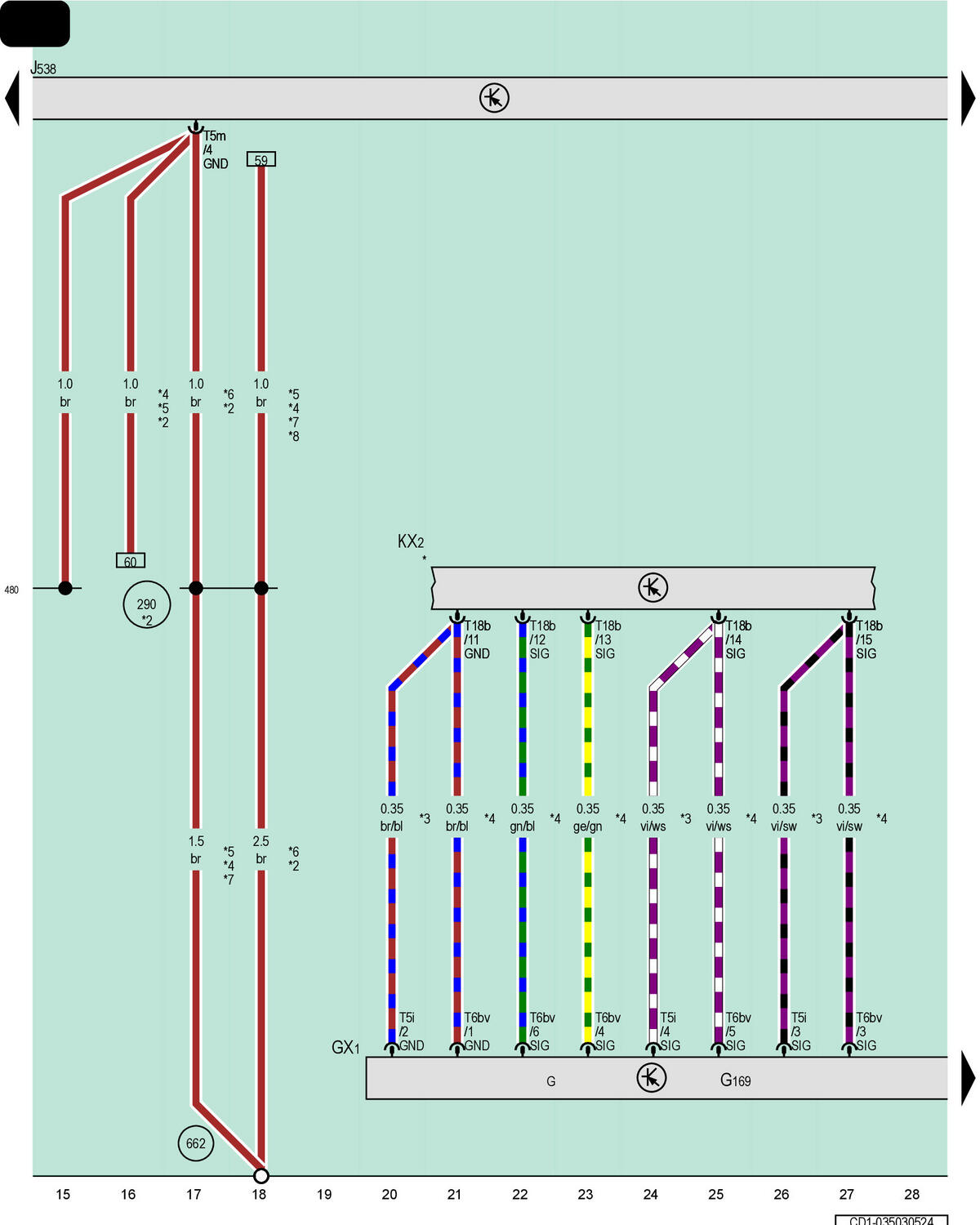

Fuel Delivery Unit, Fuel Pump Control Module, Instrument Cluster
G
Fuel Level Sensor
GX1
Fuel Delivery Unit
G169
Fuel Level Sensor 2
J538
Fuel Pump Control Module
KX2
Instrument Cluster
T5i
5-Pin Connector, Black
T5m
5-Pin Connector, Black
T6bv
6-Pin Connector, Black
T18b
18-Pin Connector, Black
290
Ground Connection 1 (in Auxiliary Battery Wiring Harness)
480
Ground Connection (in Fuel Tank Wiring Harness)
662
Ground Connection in Left Rear Side Panel
*
Refer to Applicable Wiring Diagram for Instrument Cluster
*2
From July 2020
*3
For Vehicles Without All-Wheel Drive
*4
For AWD Vehicles
*5
For Vehicles with 2.0L Gasoline Engine
*6
For Vehicles with Hybrid Drive
*7
From November 2020
*8
For Vehicles Without Top Sport Equipment
