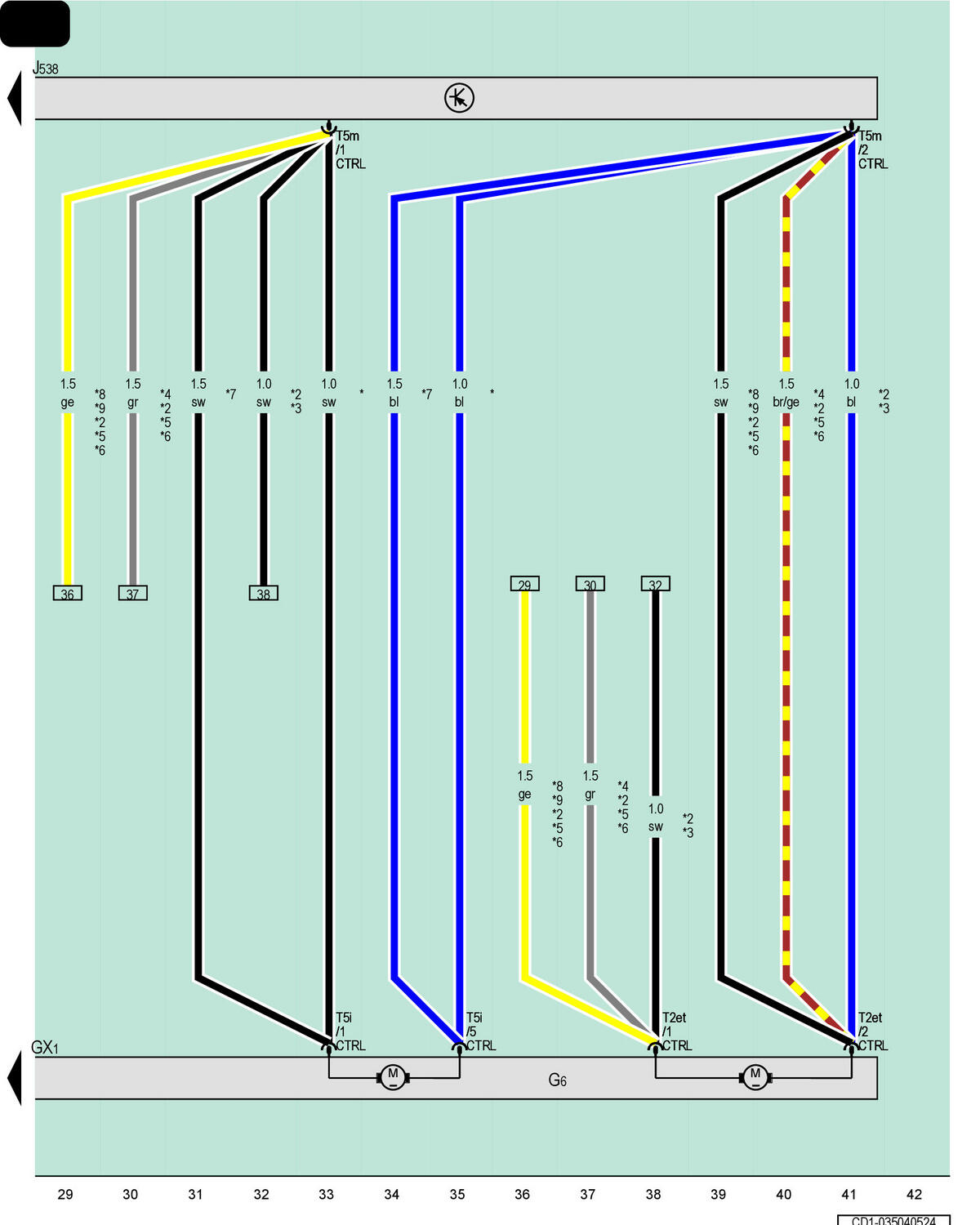

Fuel Delivery Unit, Fuel Pump Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

J538

Fuel Pump Control Module

T2et

2-Pin Connector, Black

T5i

5-Pin Connector, Black

T5m

5-Pin Connector, Black

*

For Vehicles Without All-Wheel Drive

*2

For AWD Vehicles

*3

For Vehicles Without Top Sport Equipment

*4

From July 2020

*5

For Vehicles with 2.0L Gasoline Engine

*6

For Vehicles with Top Sport Equipment

*7

For Vehicles with Hybrid Drive

*8

From April 2022

*9

Running Change
