Steering Column, Removing And Installing: Removing

-- Remove the Steering Column Electronics Control Module -J527-. Refer to STEERING COLUMN ELECTRONICS CONTROL MODULE J527, REMOVING AND INSTALLING .

-- Remove the footwell vent under the steering column. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

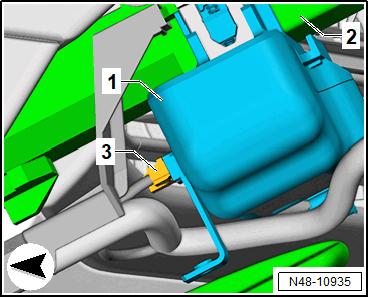

-- Disconnect the connector -3- from the Electronic Steering Column Lock Control Module -J764- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and detach the wiring guide -1- for the wire -2- on the steering column -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

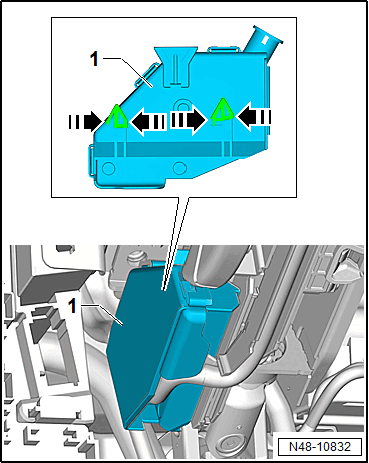

-- Release the tabs -arrows- from the wiring guide -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cable guide -1- downward from the steering column.

-- Open the wire brackets -1- -arrows- and remove.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the wire to the side.

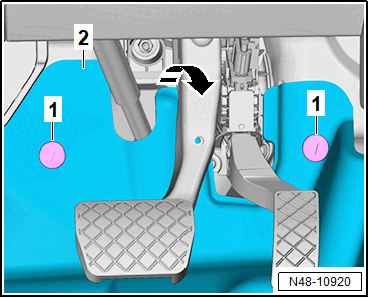

-- Loosen the buttons -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Flip the footwell trim panel -2- in -direction of the arrow-.

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the universal joint -2- in the -direction of the arrow-.

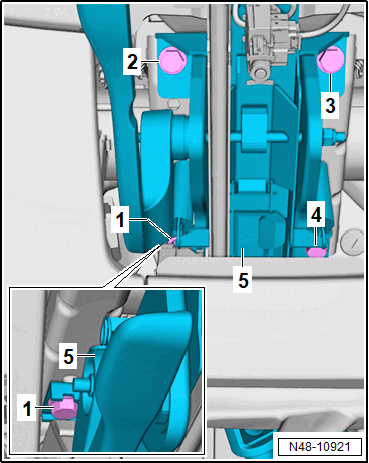

-- Remove the bolts -1- through -4- and at the same time hold the steering column -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

LHD vehicle

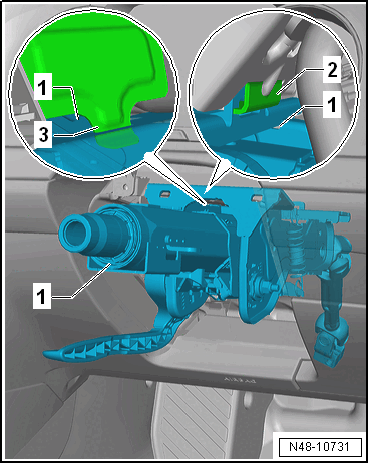

-- Remove the steering column -1- at the crossmember from the guides -2- and -3- in direction of the driver seat.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

RHD vehicles

-- Remove the steering column -1- at the crossmember from the guides -2- and -3- in direction of the driver seat.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles
