Function Programming

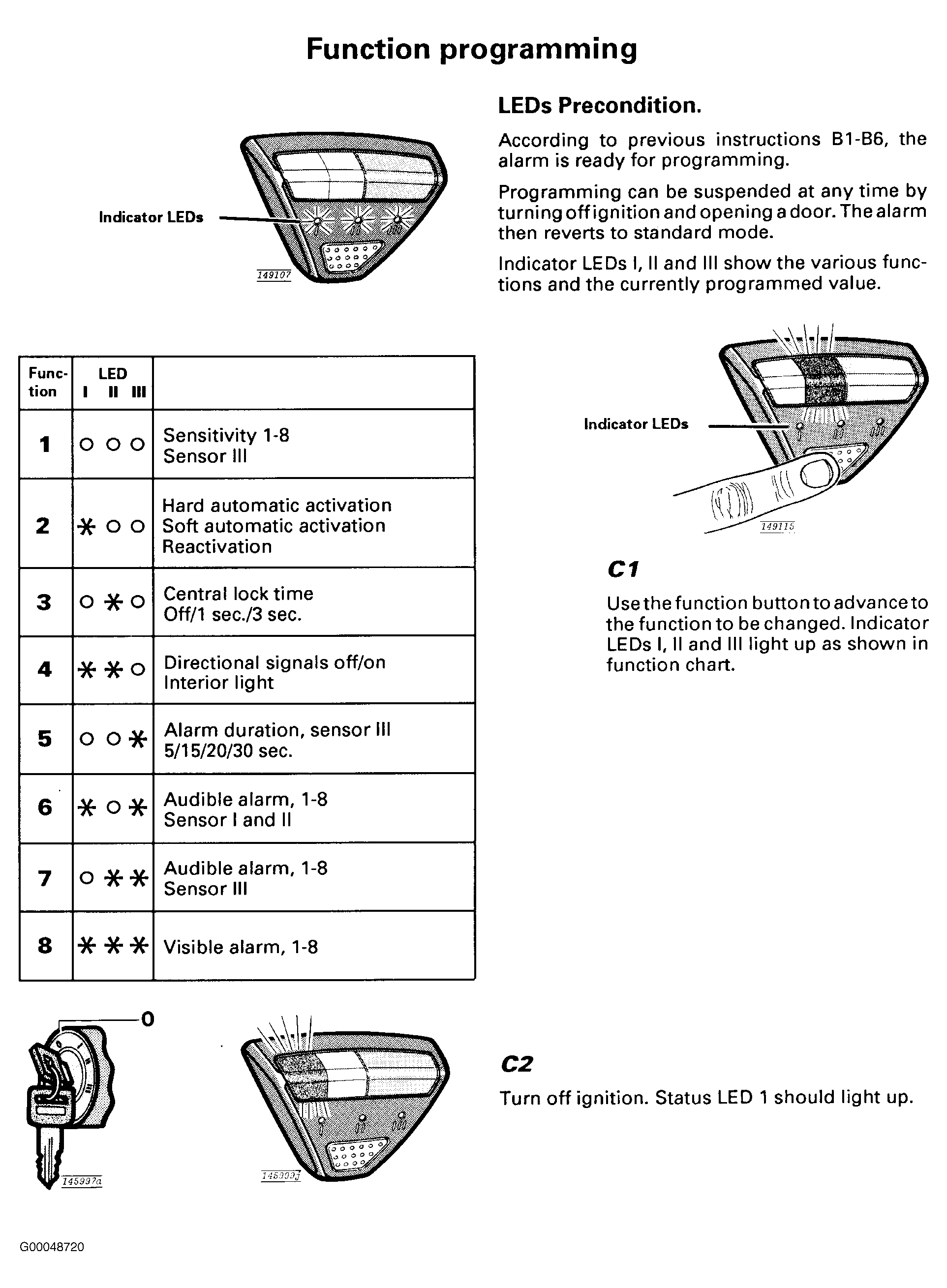

Fig 1: Control Unit Function Programming (1 Of 3)
Courtesy of VOLVO CARS OF NORTH AMERICA.

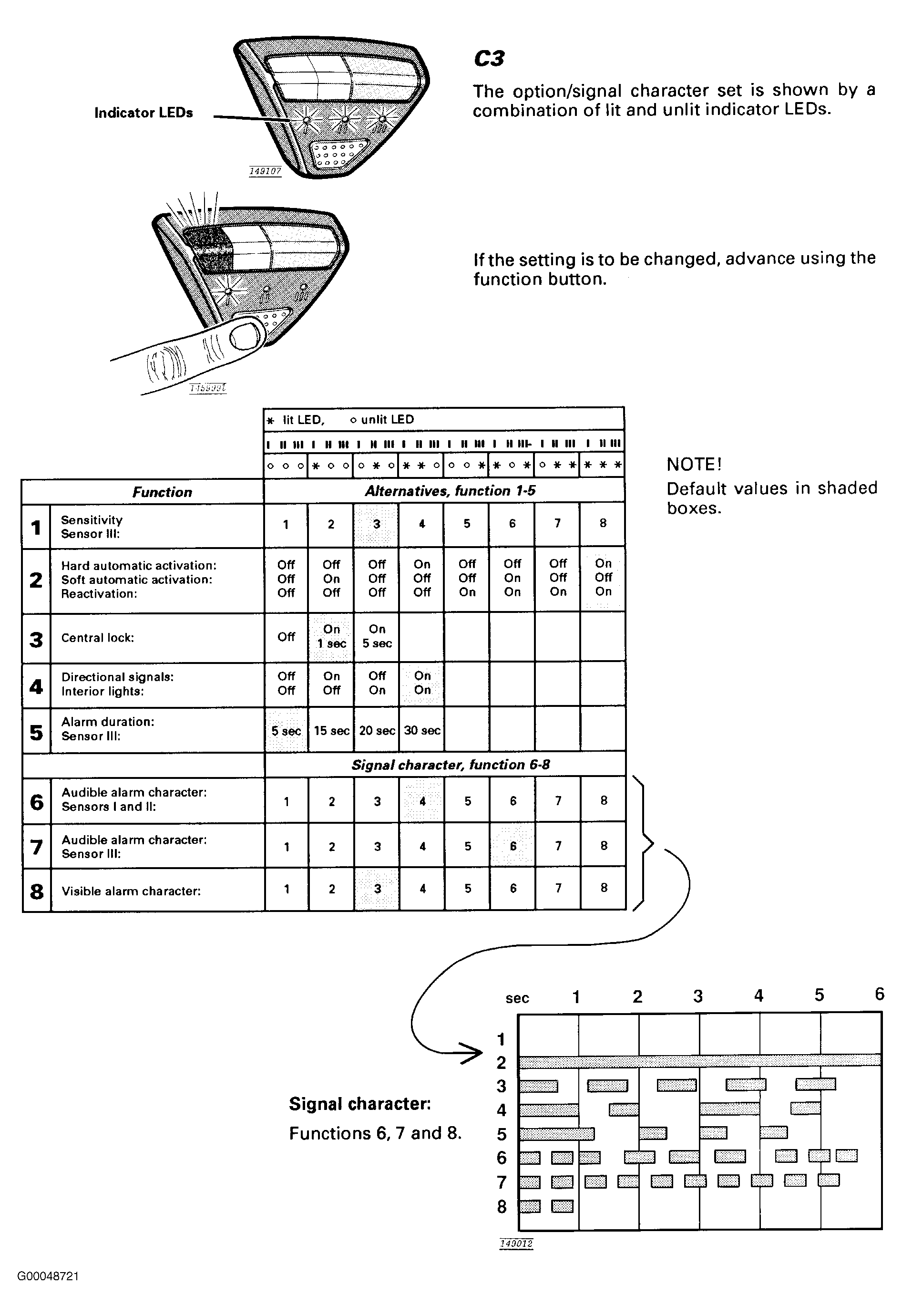

Fig 2: Control Unit Function Programming (2 Of 3)
Courtesy of VOLVO CARS OF NORTH AMERICA.

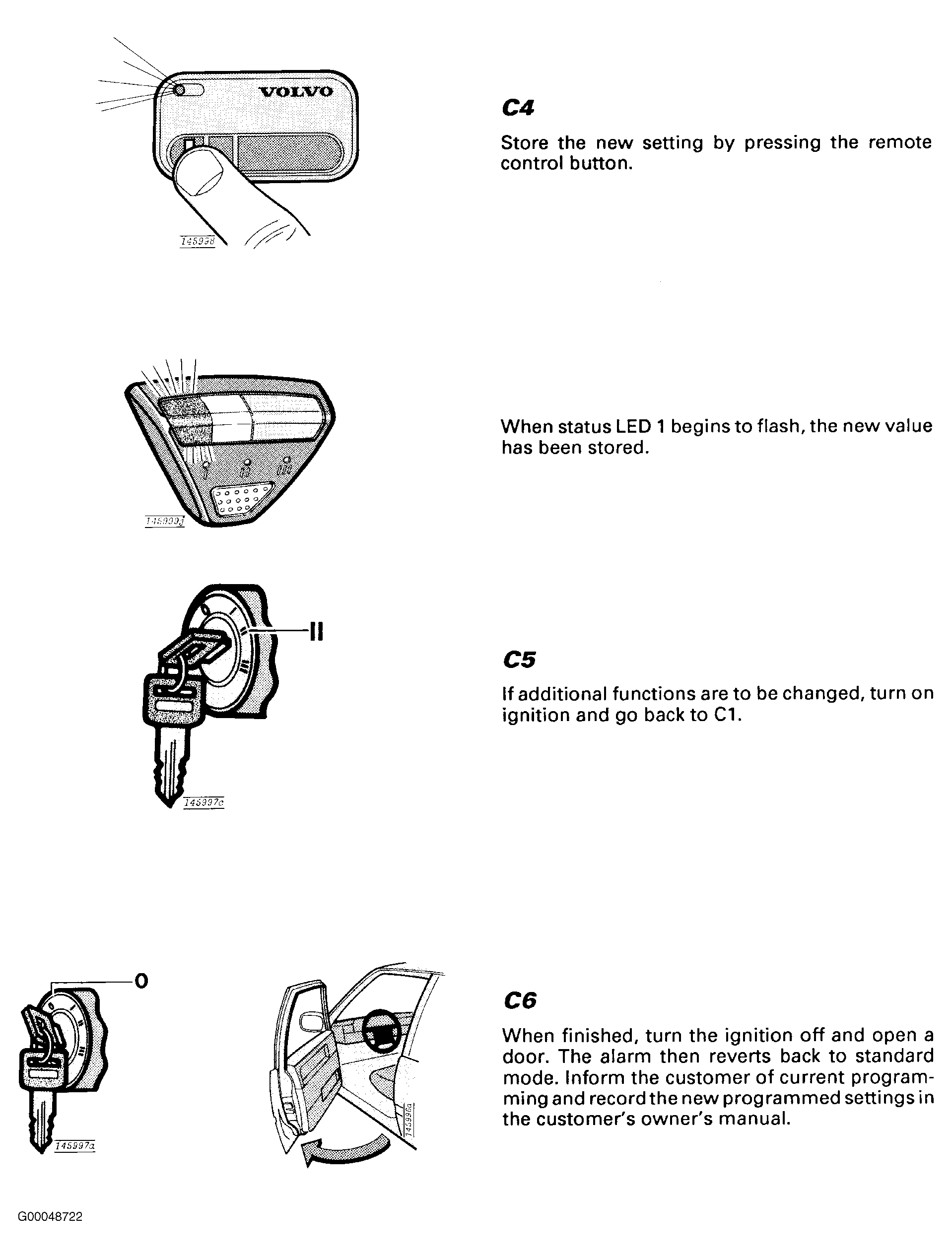

Fig 3: Control Unit Function Programming (3 Of 3)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
