Planetary Gear Assembly: Inspection

Clean all parts (except discs) with clean solvent and dry with compressed air. Inspect all parts for wear, cracks, or other damage and replace as necessary. Check thickness of each brake disc. Replace discs if thickness is less than .08" (2.1 mm).

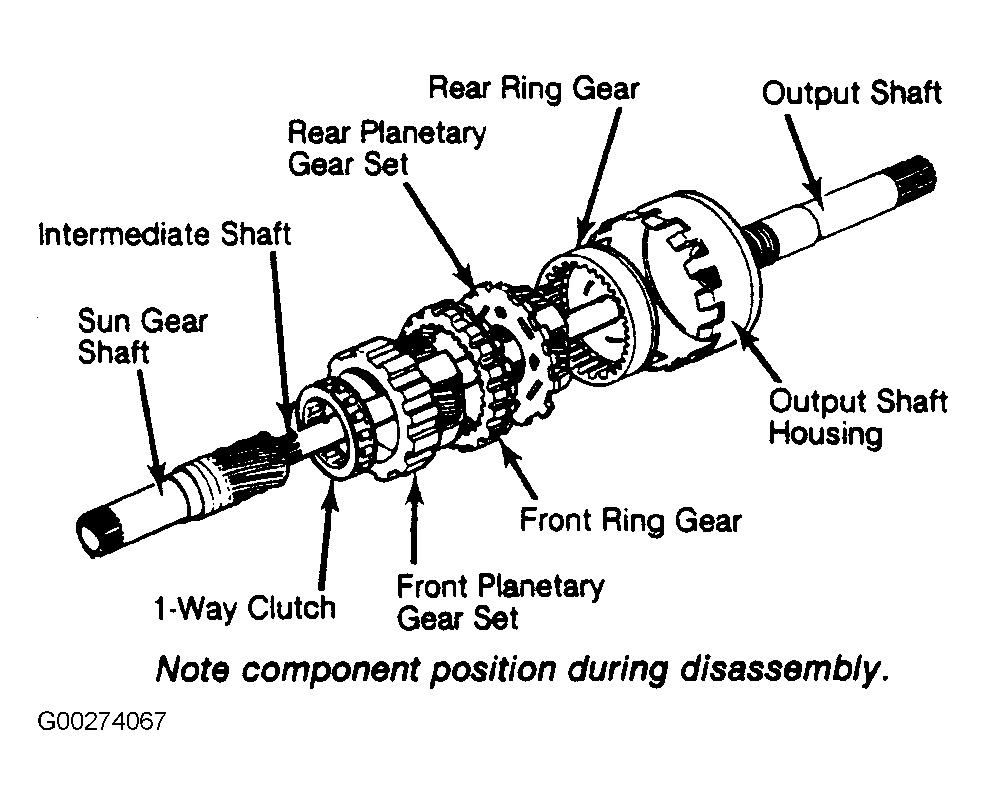

Fig 1: Exploded View Of Planetary Gear Set

Courtesy of ISUZU MOTOR CO.
