Engine Management Systems And Control Modules (GROUP 28, NO. 206)

Publication date: 1996-10-01
Reference number: GROUP 28, NO. 206

ENGINE MANAGEMENT SYSTEMS AND CONTROL MODULES

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 28, NO. 206, Date of Issue: October, 1996

ENGINE MANAGEMENT SYSTEMS AND CONTROL MODULES FOR 200, 4 CYCLE F ENGINES

Model(s): 1985-93 Volvo 240

Section: 2 - Engine

Group: 28

Bulletin No.: 206

Date: October, 1996

REFERENCE

TP 30869/1, Section 2 (20-22), Engine B230F; 240 1985-1993.

SERVICE INFORMATION

The number of engine management systems and variants has increased over the years.

Fig 1 and Fig 2 contain the type of fuel injection system, ignition system and control module P/N for each engine type and model year.

The P/Ns apply to factory installed control modules. Replacement part numbers may vary depending on whether the control module is a replacement unit or not. If necessary compare with the cross-list.

Note that some systems are only available in certain markets and may not be available in your market.

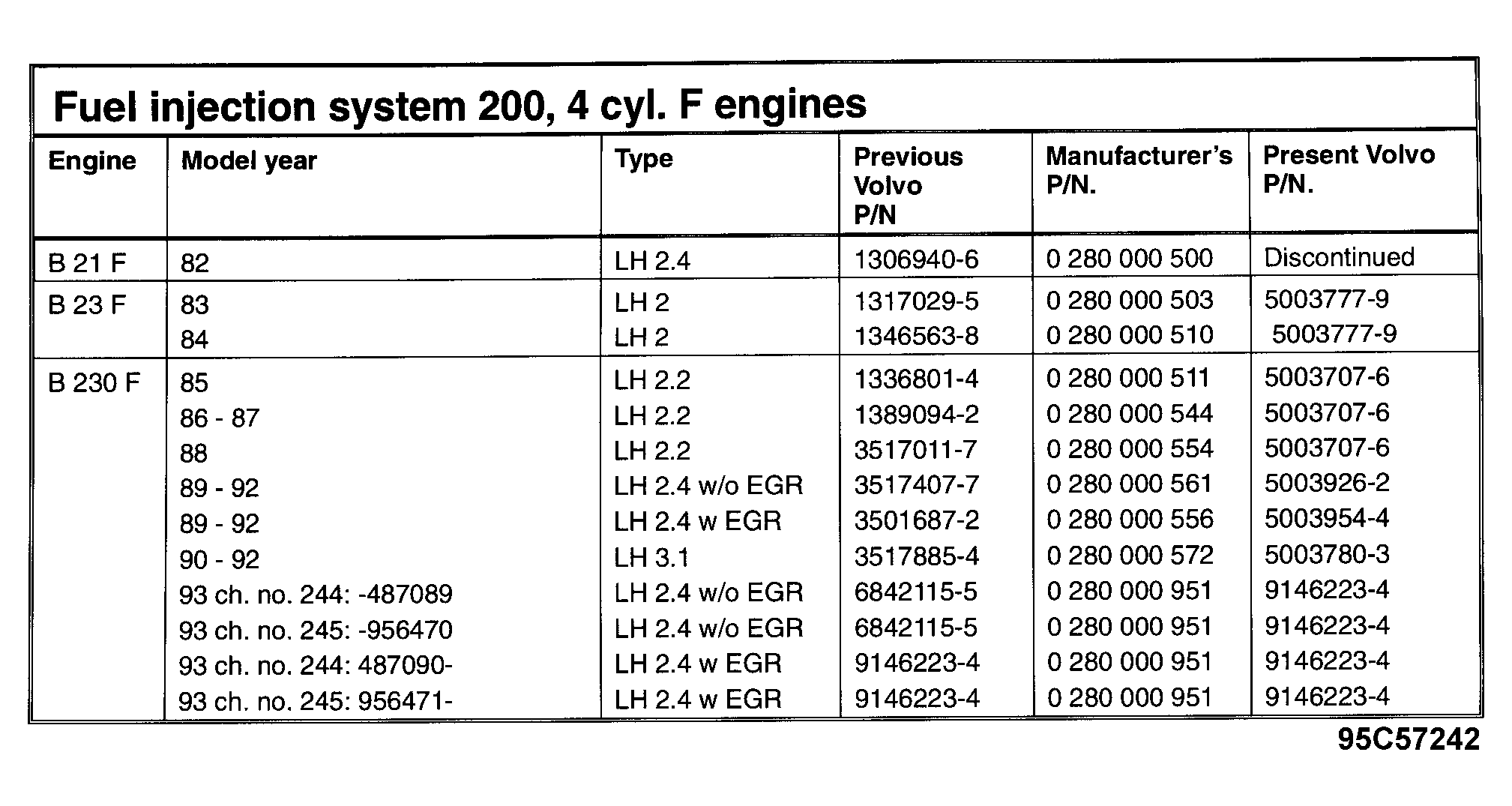

Fig 1: Fuel Injection System 200, 4 Cycle F Engines Table

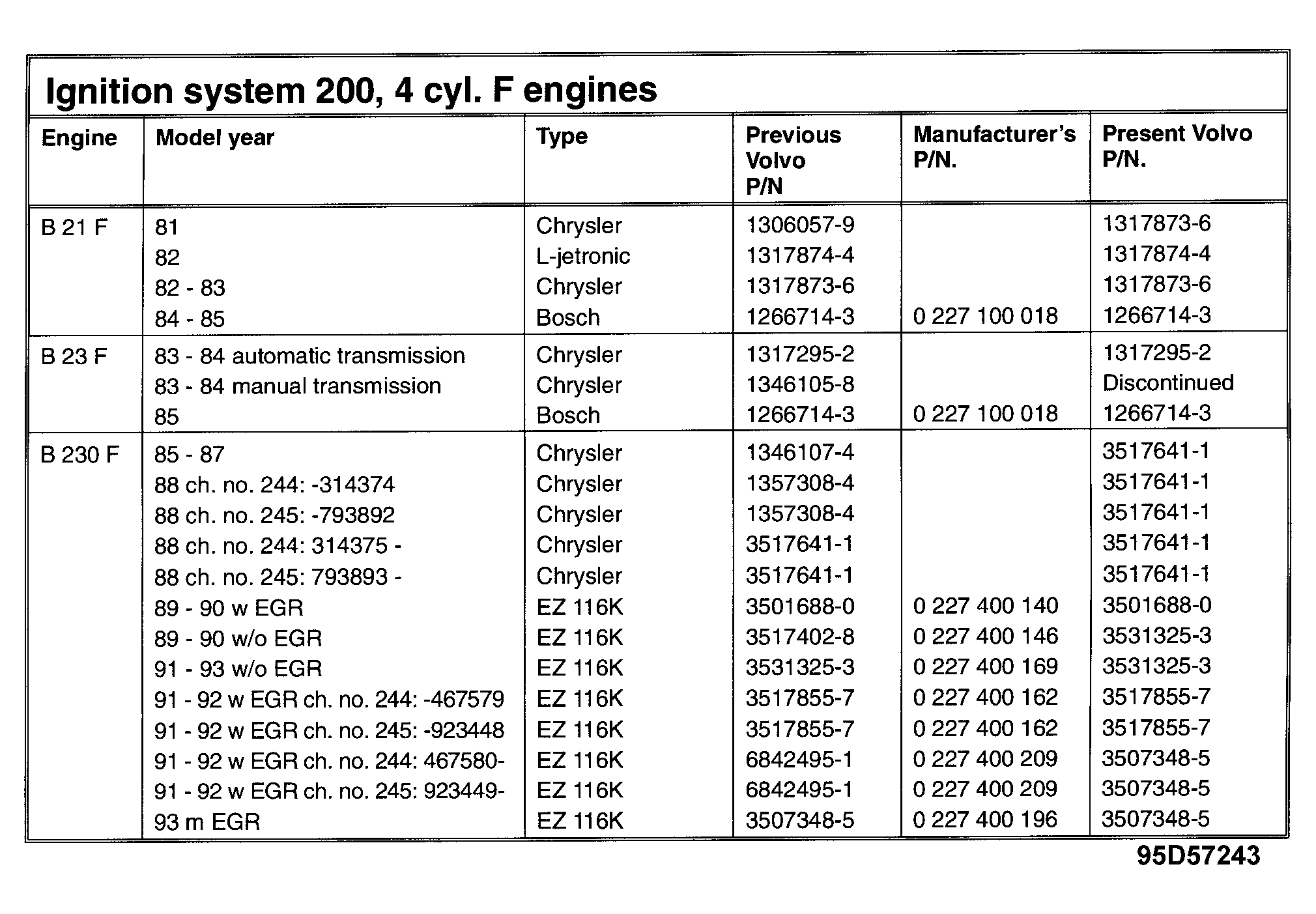

Fig 2: Ignition System 200, 4 Cycle F Engines Table
