TEMPLATE FOR MODIFYING WINDSHIELD FRAME

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 81, NO. 210, Date of Issue: December, 1996

Model(s): 1975-93 Volvo 240

Section: 8 - Body

Group: 81

Bulletin No.: 210

Date: December, 1996

TP 31120/1, Section 8(82 88), Body Fittings, Interior Heating and A/C 200 1975-On.

The replacement part windshield frame is supplied without windshield wiper holes.

This Service Bulletin contains templates for marking up holes and instructions on how to position them correctly.

WARNING: TEMPLATES ARE NOT TO SCALE. They must be enlarged or reduced as necessary.

Copy templates onto transparent or overhead film.

NOTE: The old windshield frame can be used instead of foil templates.

WARNING: When drilling, protective eye wear should be worn.

Position the transparent template (or old windshield frame) on the new windshield frame.
Mark out the holes.
Drill guide holes.
Ream holes to 30 mm (1 3/16") using a conical drill. DO NOT use a hole saw. See Fig 1 .
File off holes before painting.

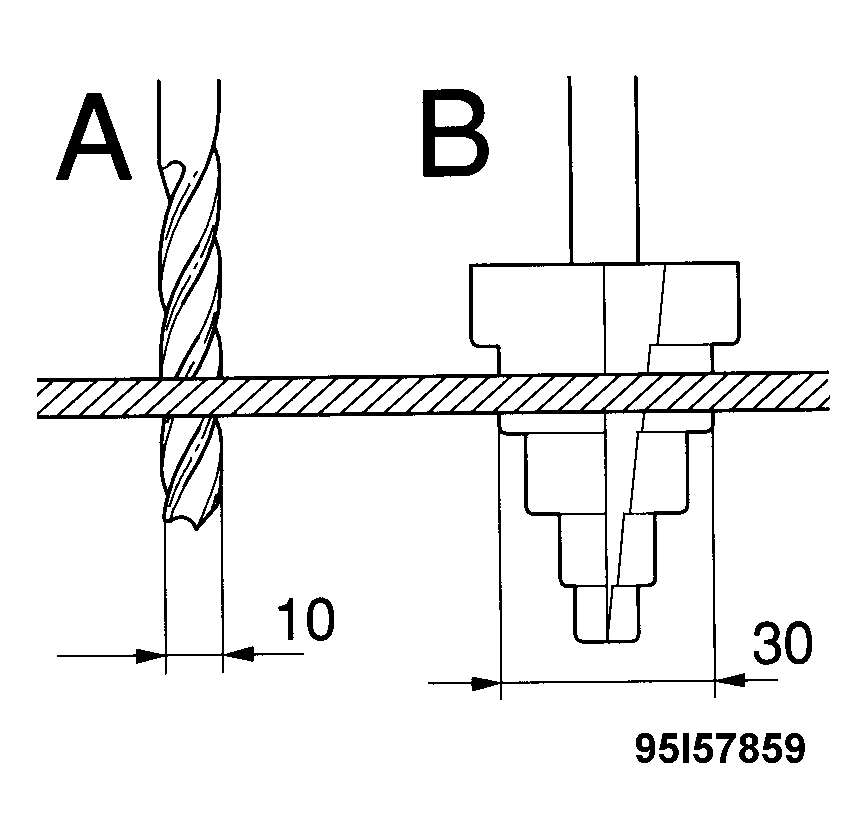

Fig 1: Ream Hole - Measurements

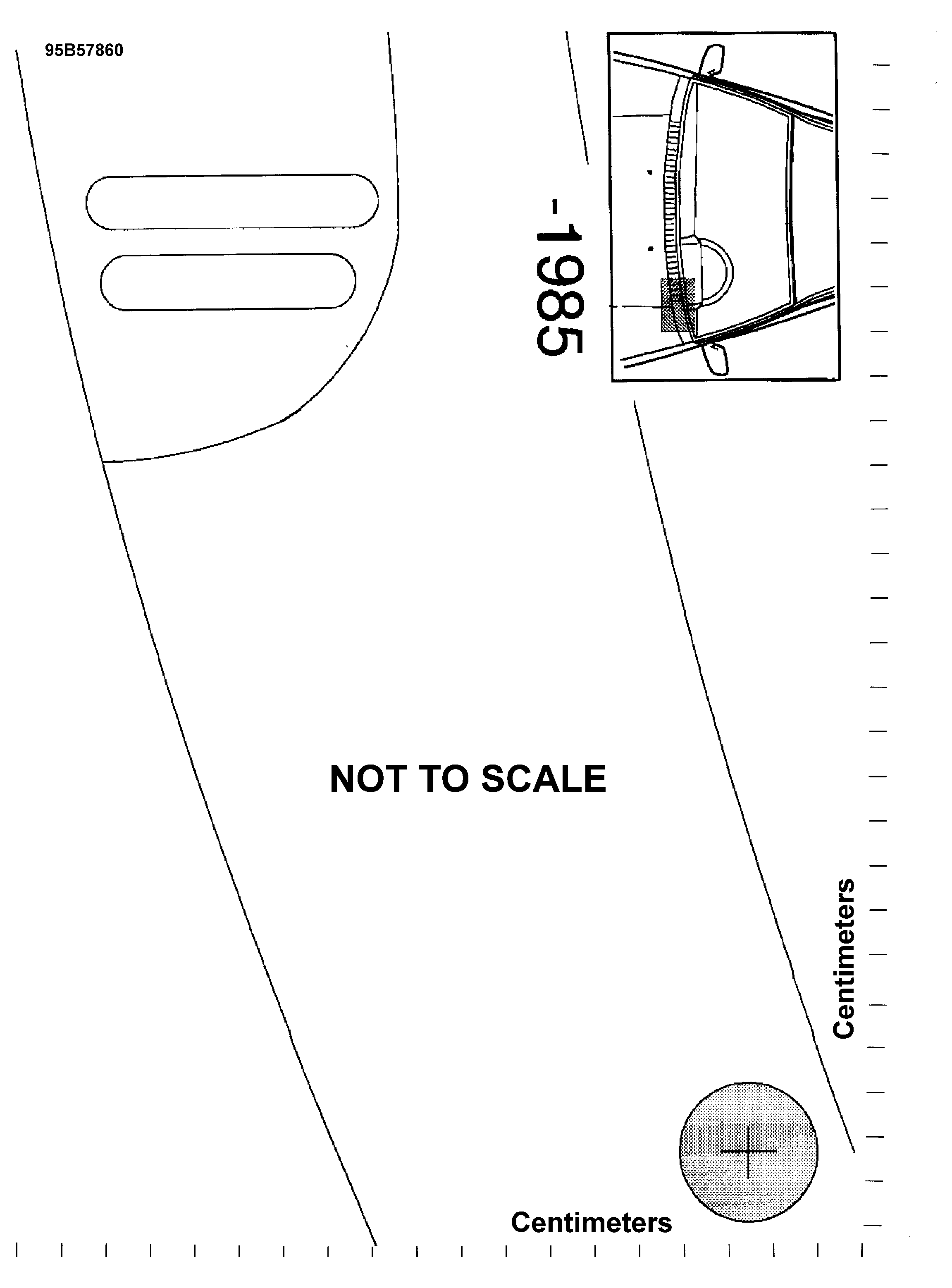

Fig 2: Template, Left Windshield Wiper - (-1985) Not To Scale. Ruler Is In Centimeters

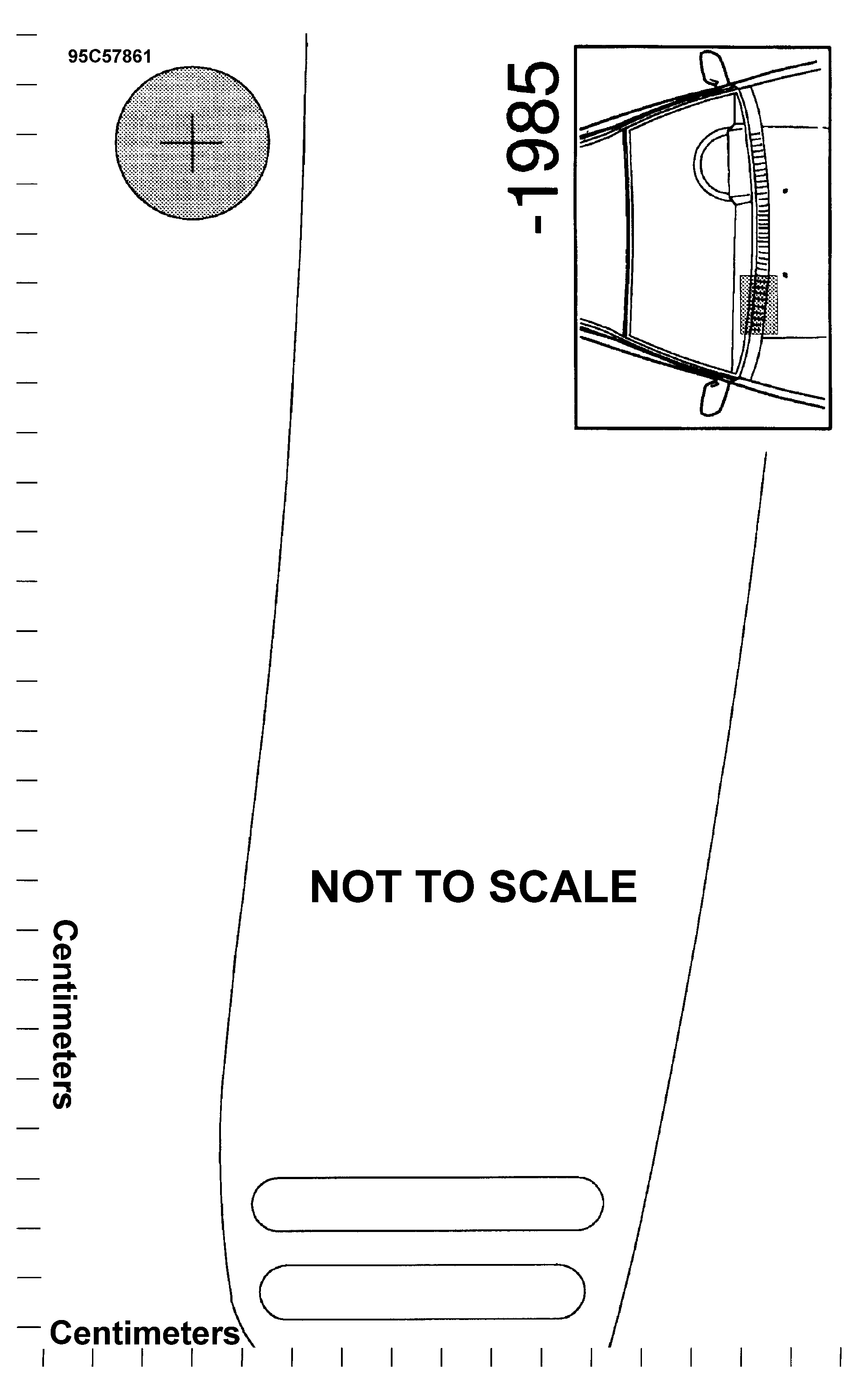

Fig 3: Template, Right Windshield Wiper - (-1985) Not To Scale Ruler Is In Centimeters

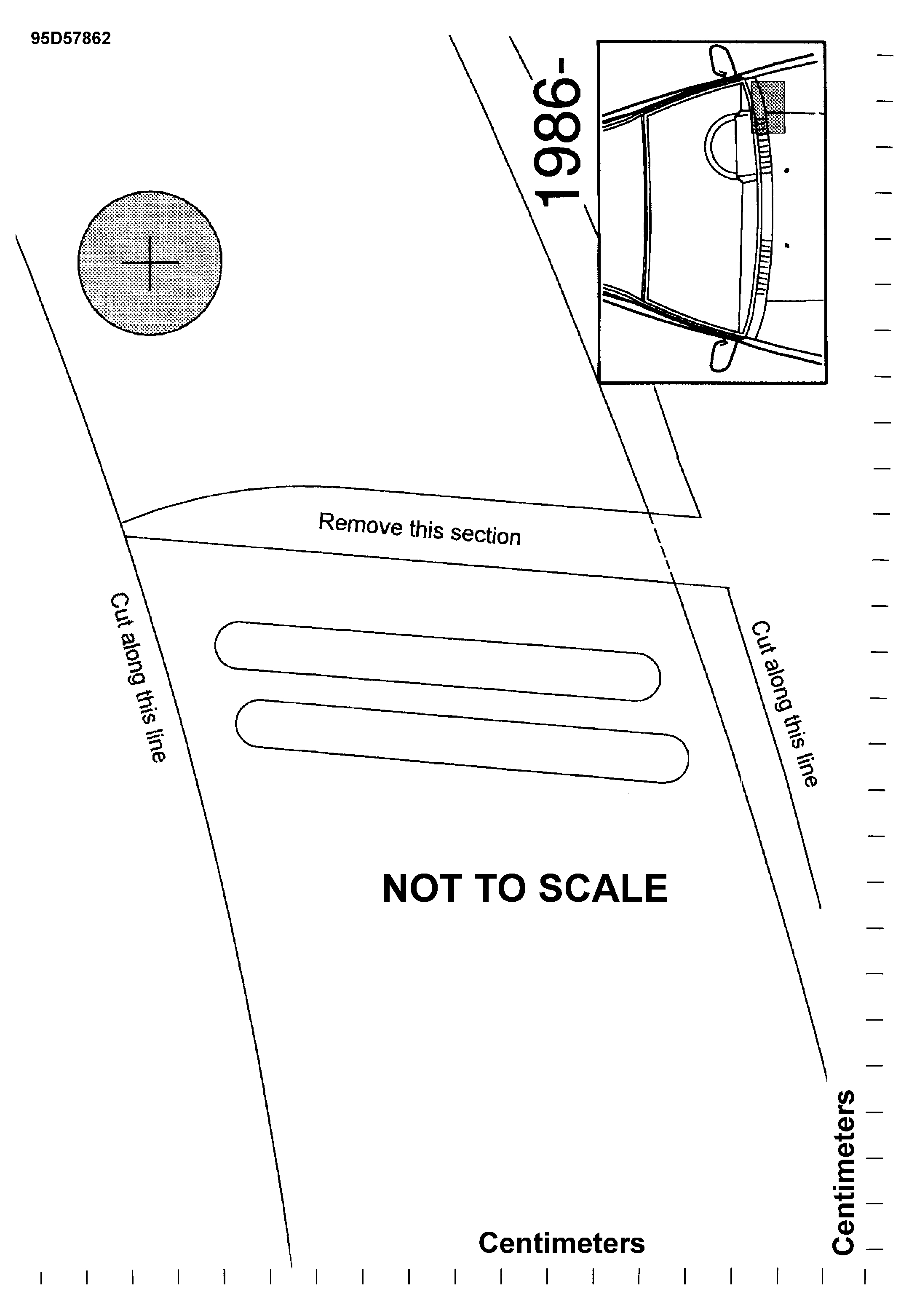

Fig 4: Template, Left Windshield Wiper - (1985-) Not To Scale Ruler Is In Centimeters

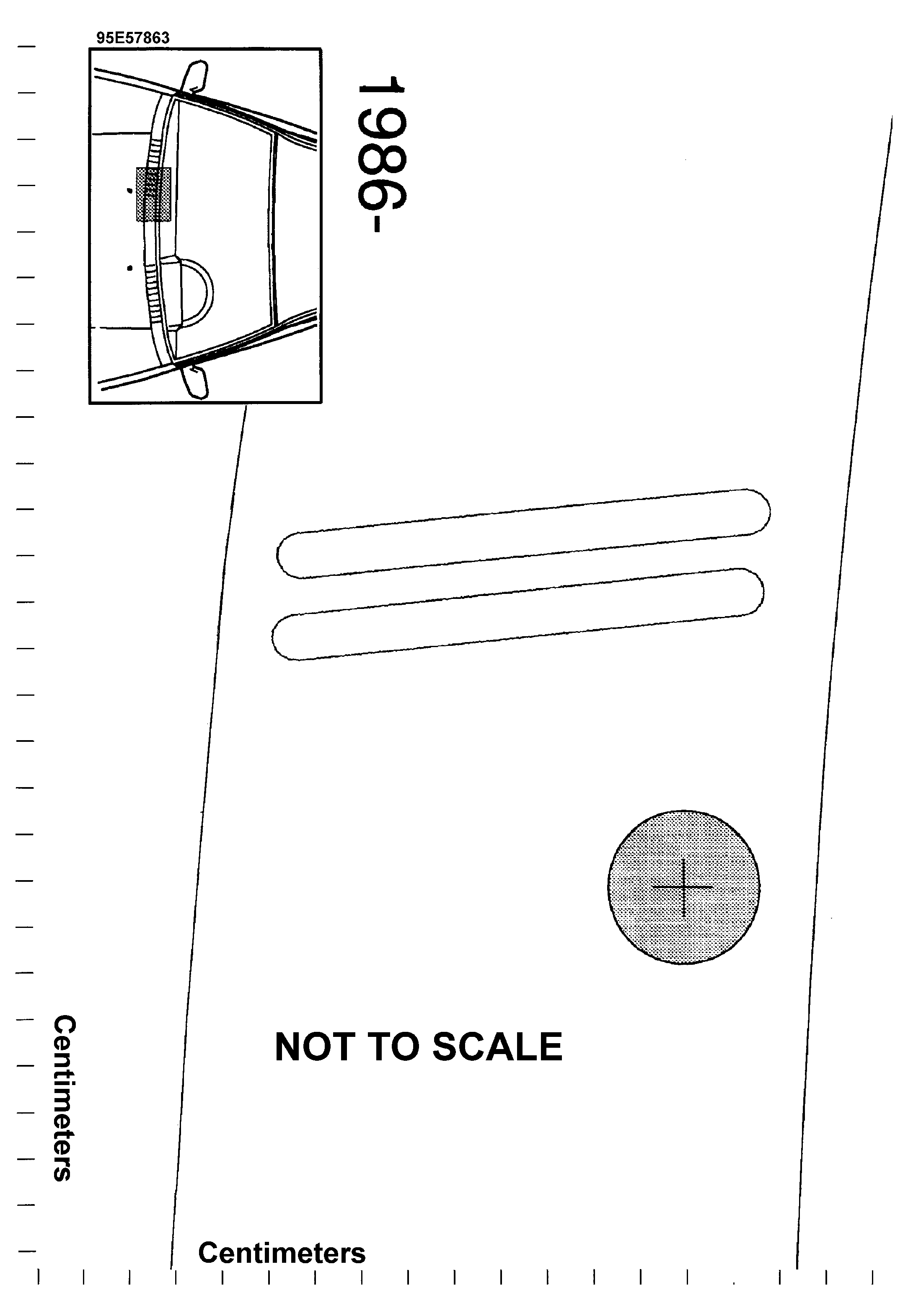

Fig 5: Template, Right Windshield Wiper - (1985-) Not To Scale Ruler Is In Centimeters

Claims may be submitted under the New Car Limited Warranty when a manufacturing defect is present using claim type: 01.

OPERATION NO.: 81911-2 - Modifying windshield frame

LABOR TIME: 0.2 hr.
