Control Units

CONTROL UNITS LOCATION

Component Location

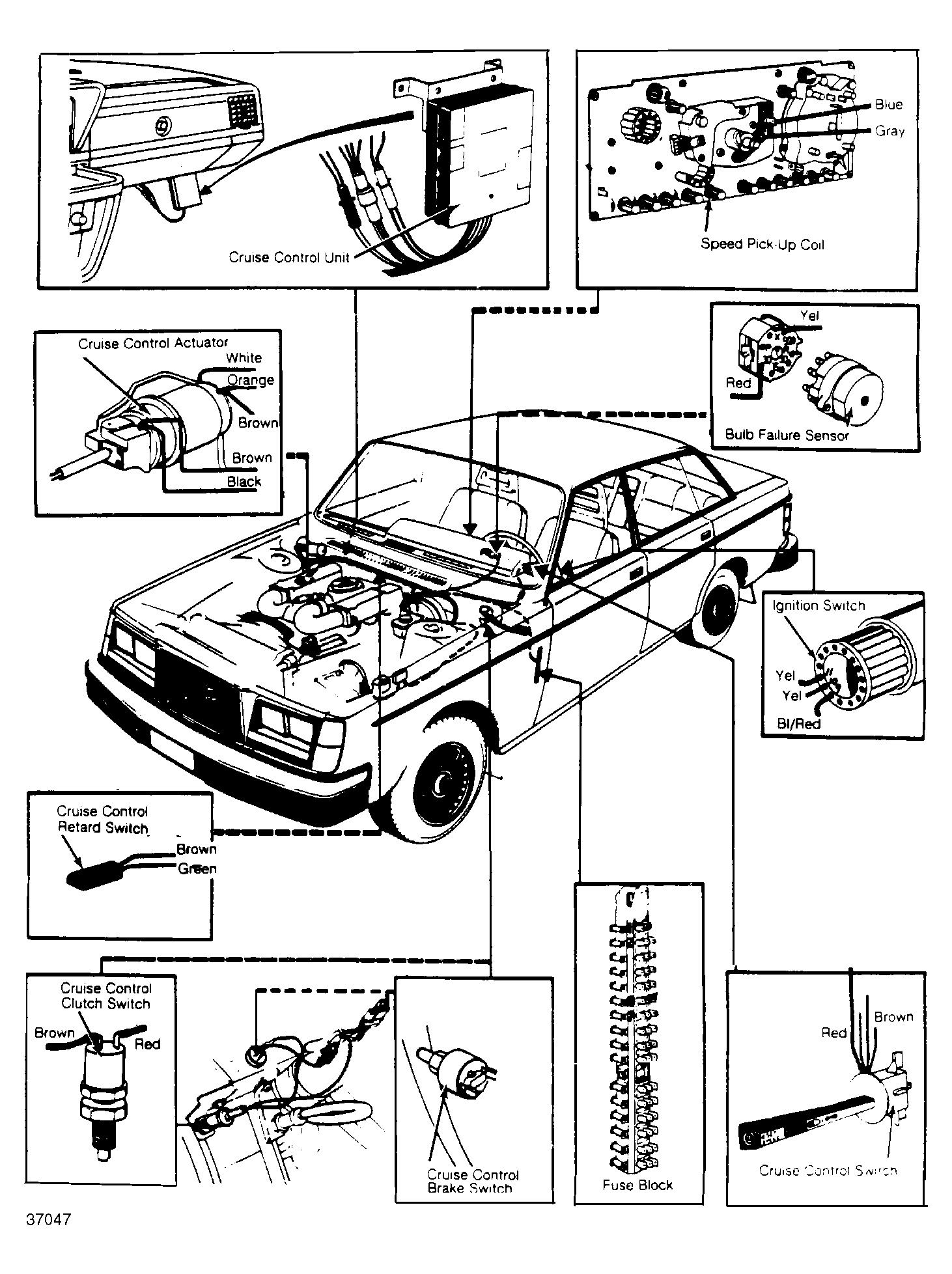

Cruise Control Unit Under right side of instrument panel. See Figure.

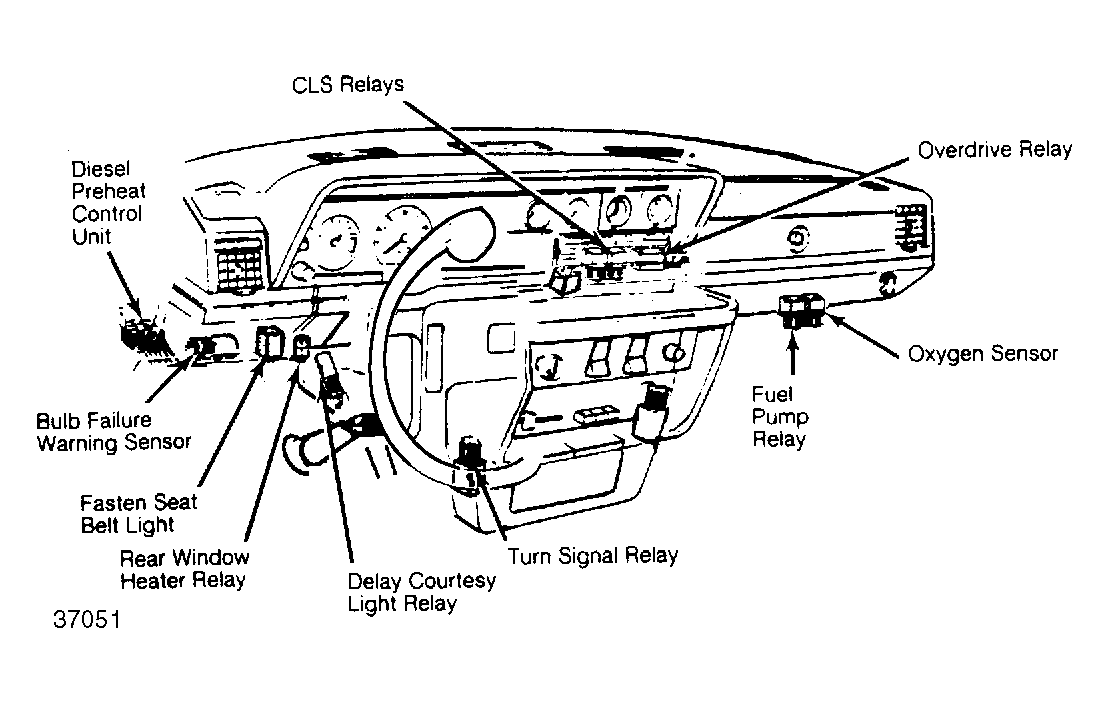

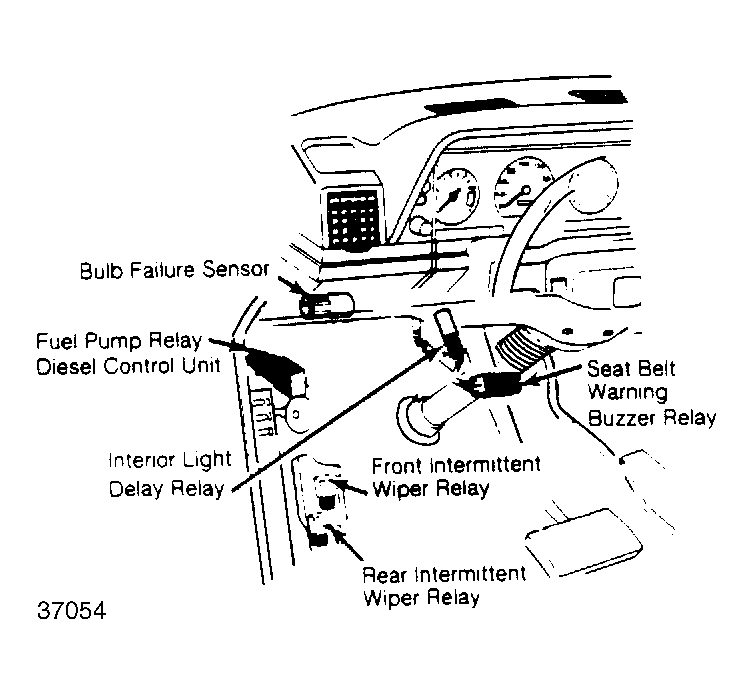

Diesel Control Unit At top of left kick panel. See Figure & Figure.

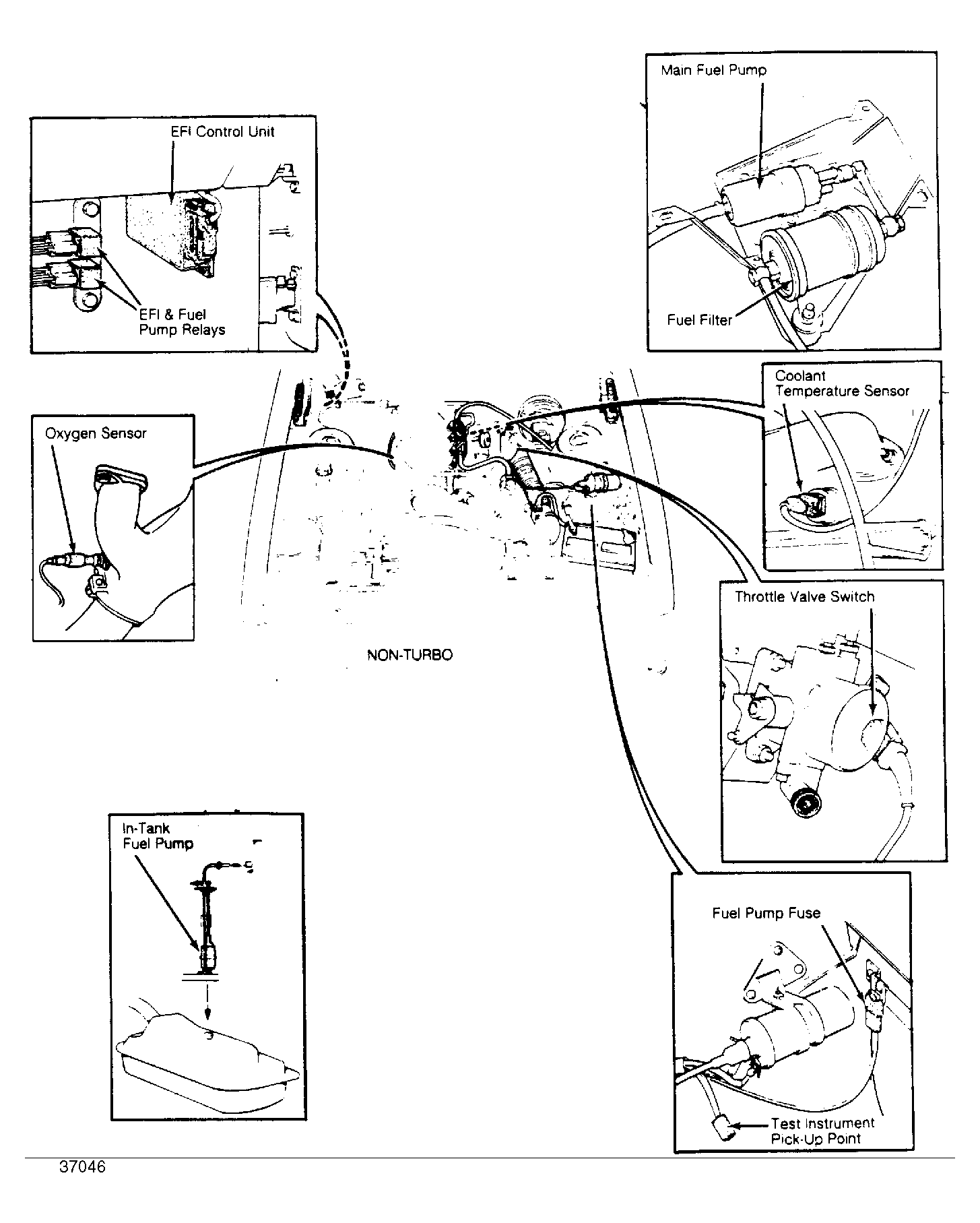

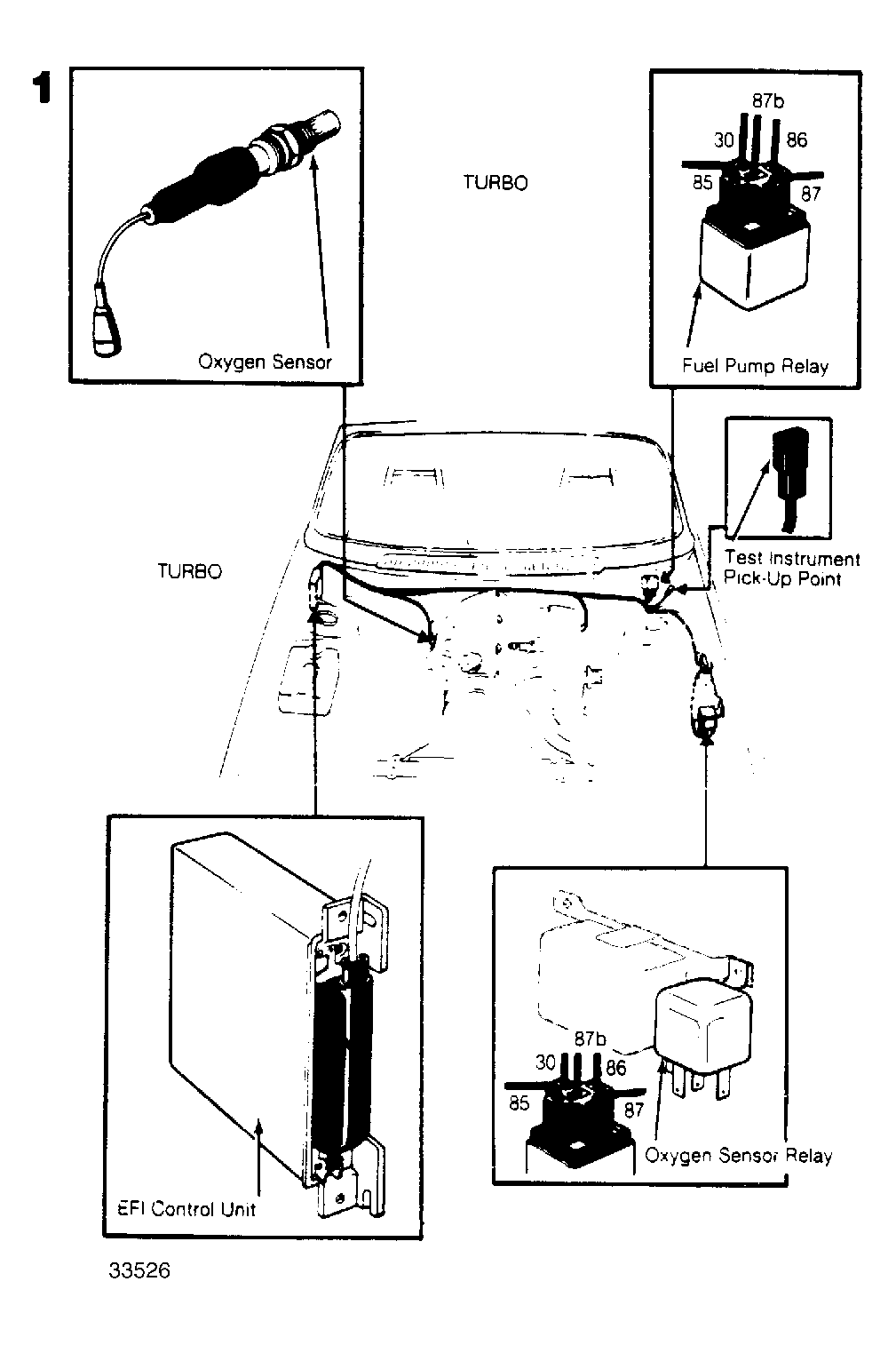

EFI Control Unit Behind right kick panel. See Figure, Figure & Figure .

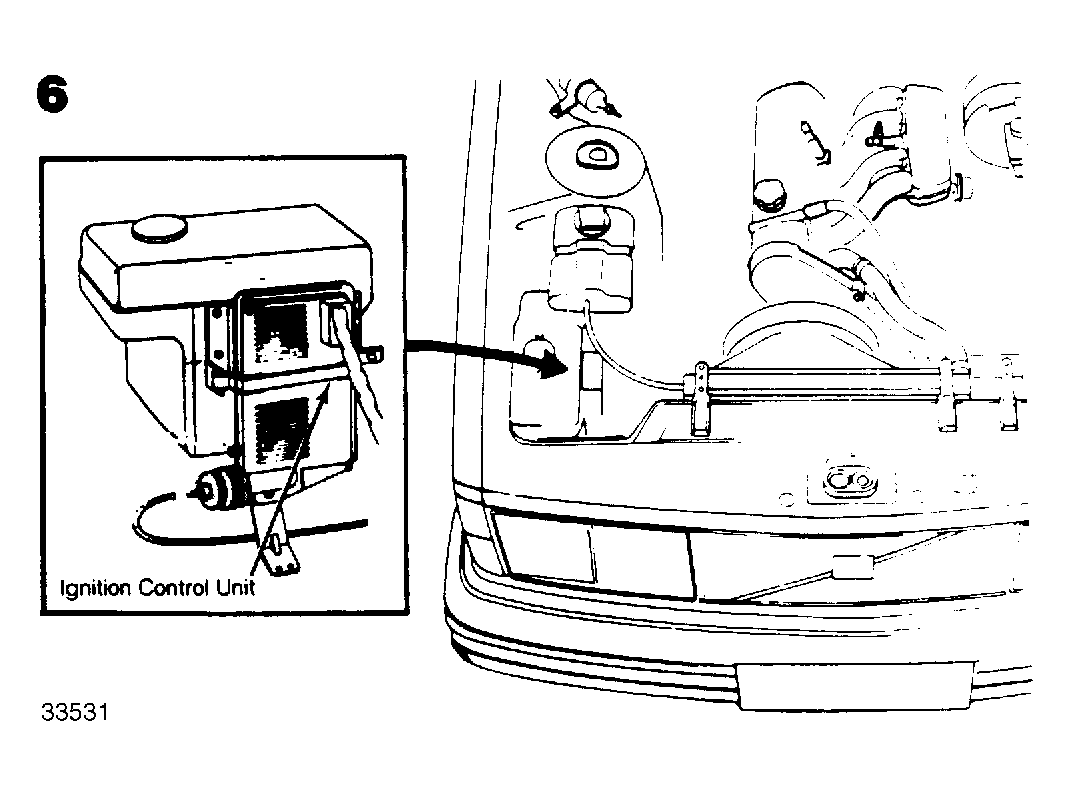

Ignition Control Unit (Non-Turbo) At right front corner of engine compartment. See Figure.

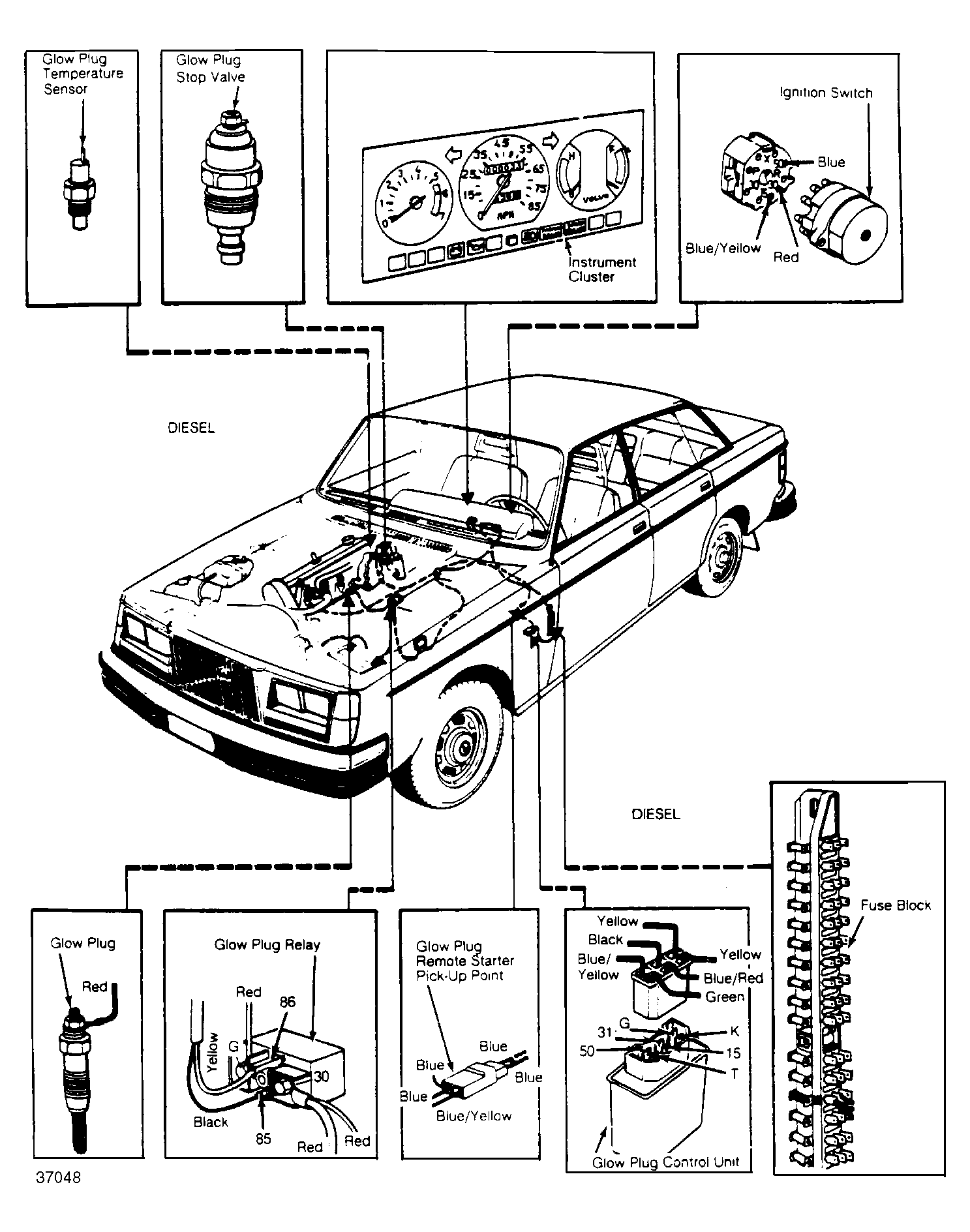

Glow Plug Control Unit On rear of left inner fender panel in engine compartment. See Figure.

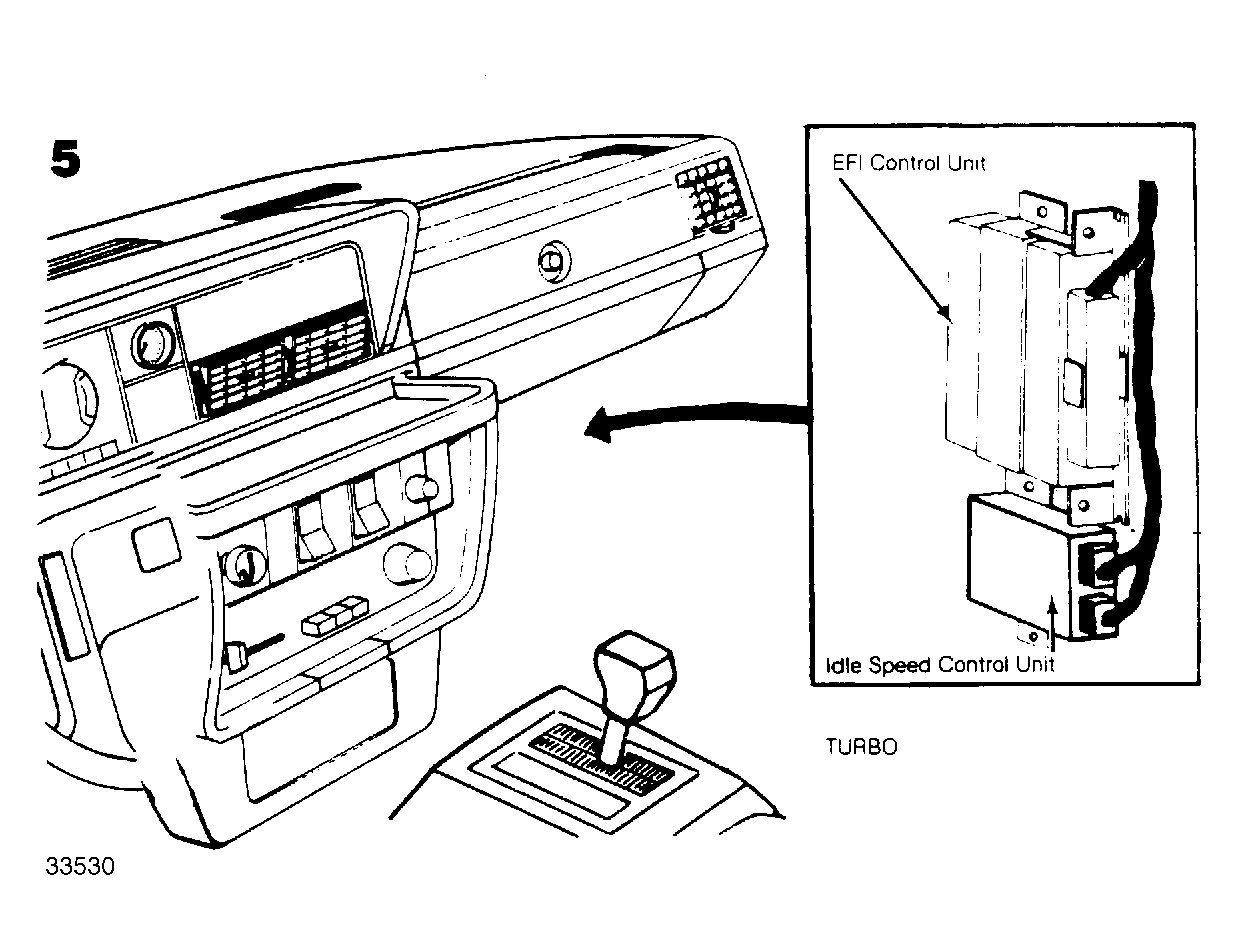

Idle Speed Control Unit (Turbo) Behind right kick panel, below EFI control unit. See Figure.
