Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| ABS In-Line Fuses | ||
| 10 Amp | On right side of trunk, on top of ABS surge protector. See Figure . | |
| 80 Amp | On right front fender, next to battery. | |
| ABS Surge Protector | In floor cavity, on right side of trunk. See Figure . | |

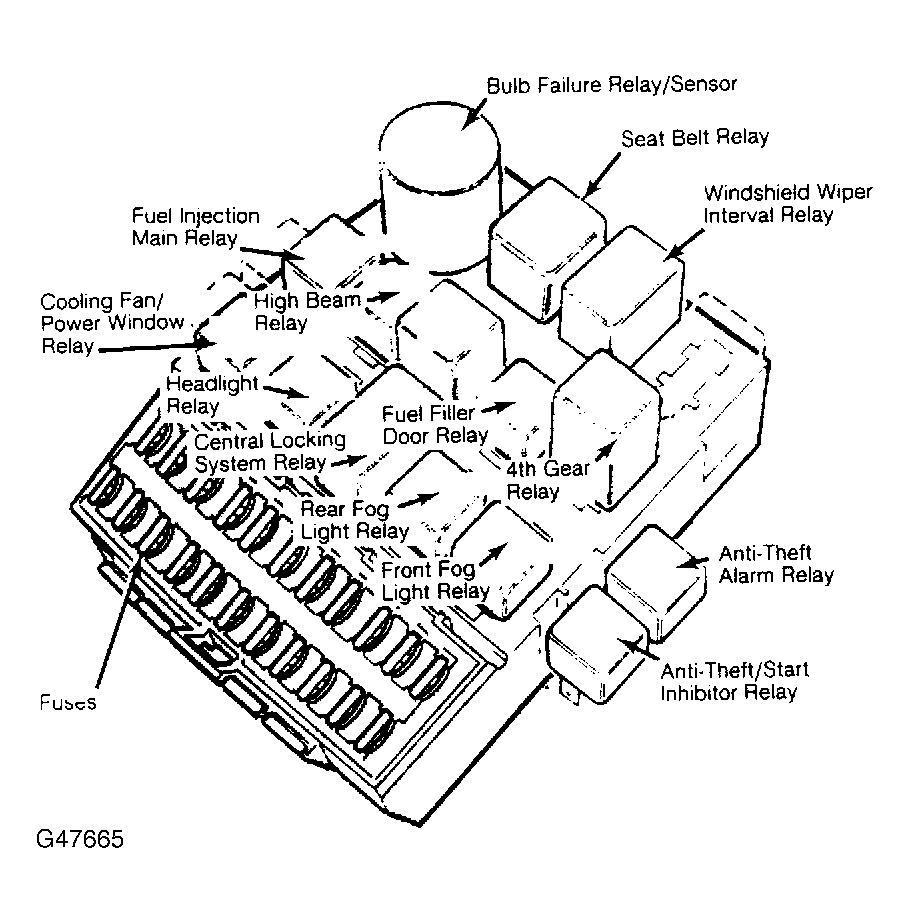

| Fuse/Relay Block | In center of dash, in front of center console. See Figure . | |
