Adjusting Clearance (1991-92)

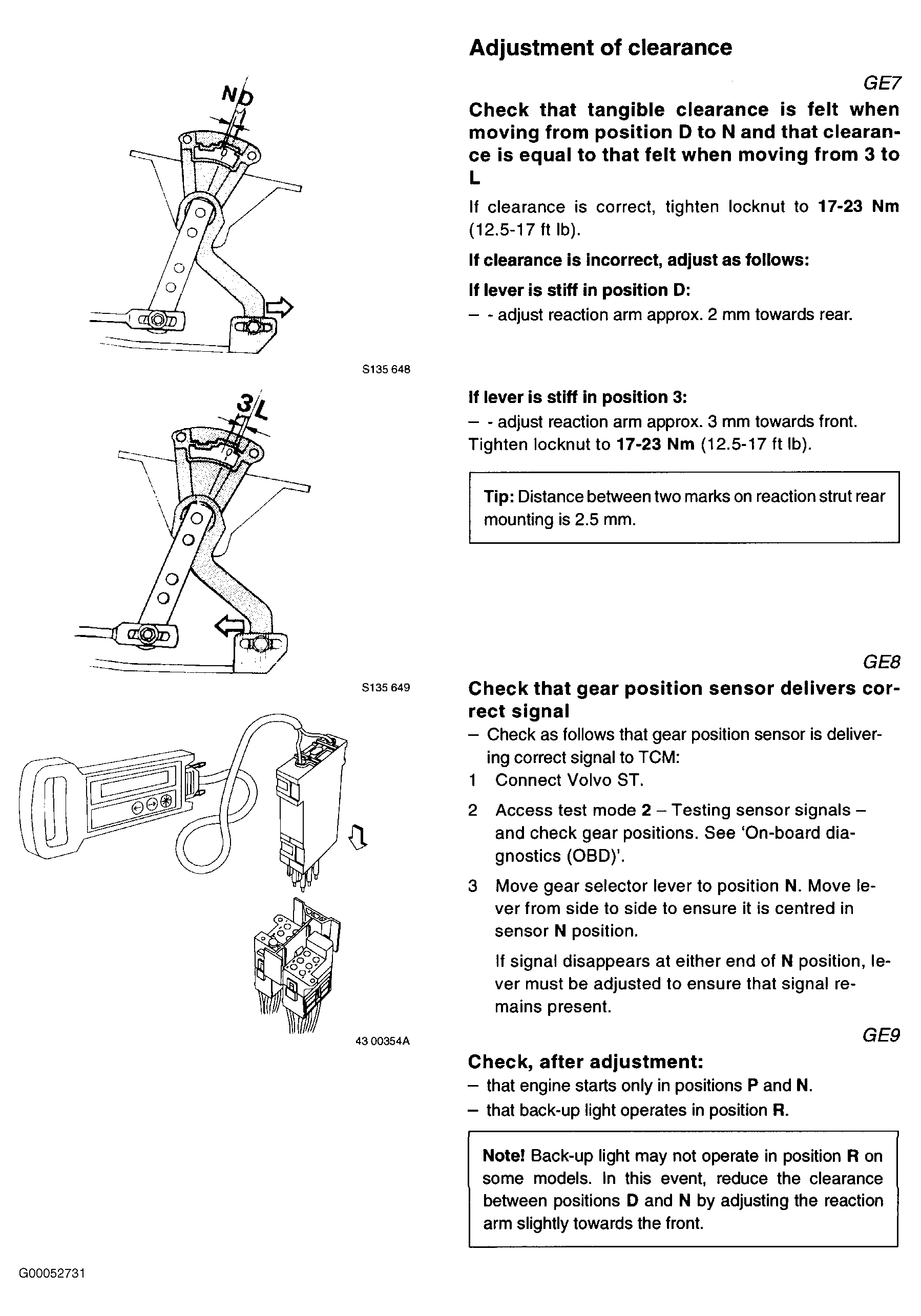

Fig 1: Adjustment Of Clearance - Steps GE7-GE9
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
