Injector/pulse damper, replacement (5-Cylinder): Preparation
Empty the fuel injection system according to Fuel system pressure release .

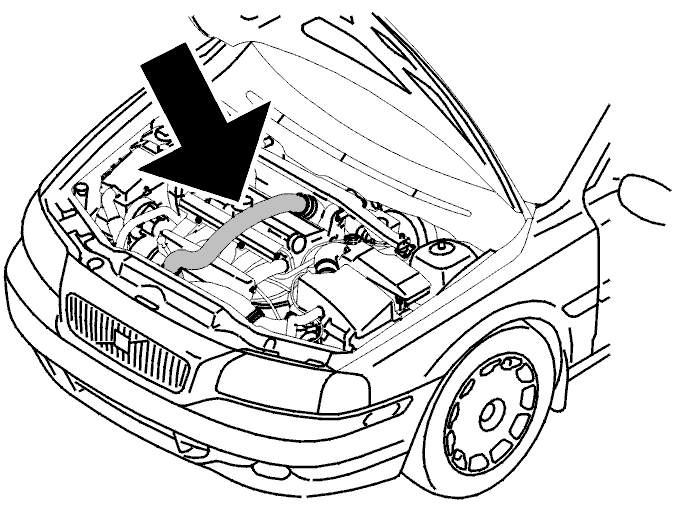

Remove the charge air pipe over the engine. Seal the openings

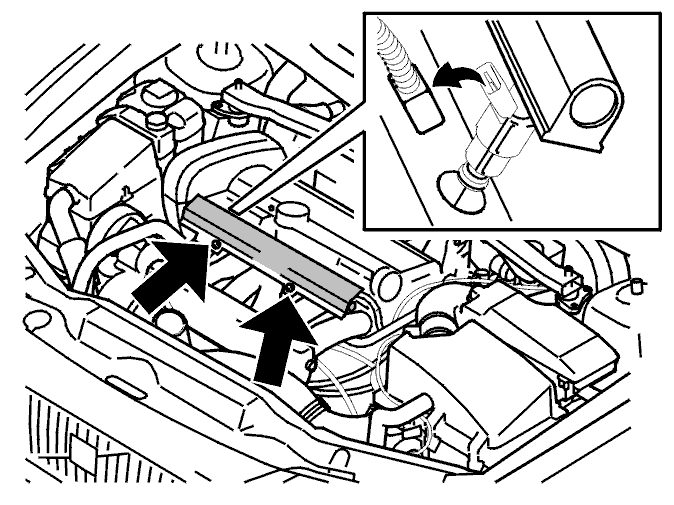

Remove the cover over the fuel rail.
Disconnect the injector connectors.
Blow clean around the injectors.
Remove the mounting screws from the fuel rail.
Open the fuel line's quick-release connector using tool 9512666 .
Spray universal oil or similar around the injector terminals on the intake manifold.
Gently work the fuel rail and injectors loose.
NOTE:
Handle the injector valves carefully to avoid damaging the injector valves' nozzles with needles.
