Manual Deployment Of Roll-Over Protection System Cartridges: Resetting

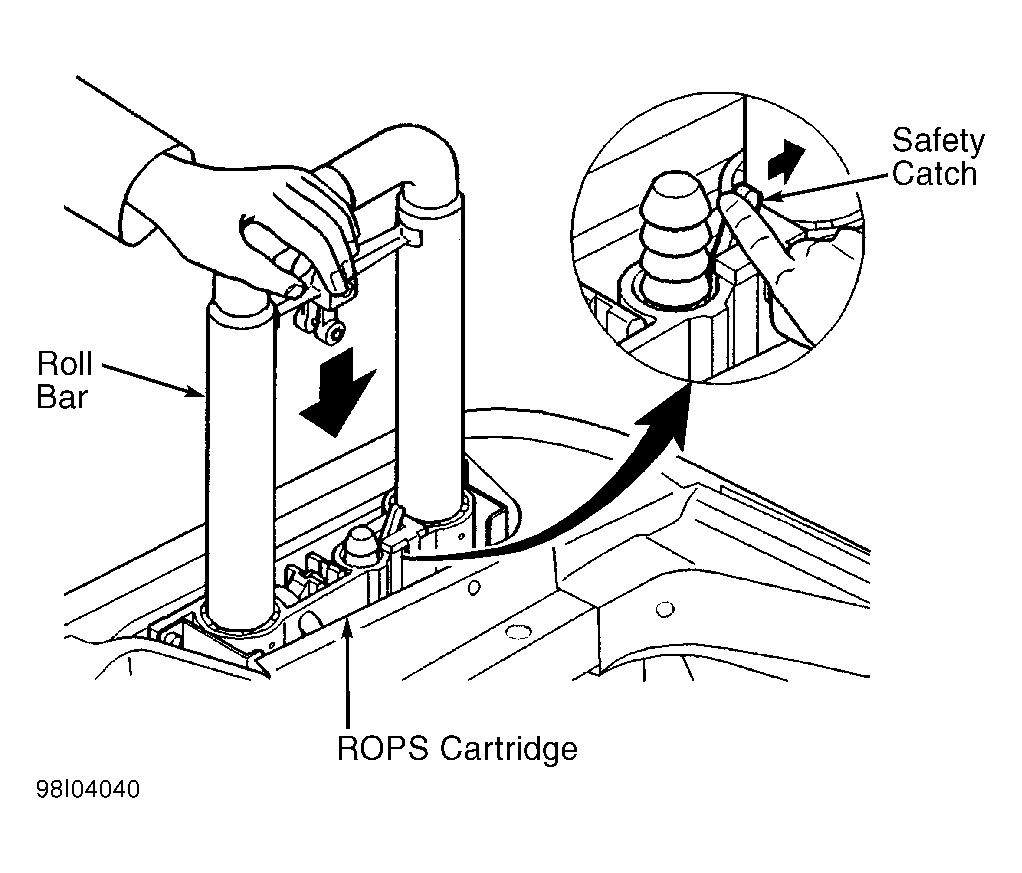

Hold safety catch to one side and push roll bar down into ROPS cartridge by hand. See Fig 2 . After compressing roll bar, release the safety catch.

Fig 1: Releasing ROPS Cartridge Roll Bar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Resetting ROPS Cartridge Roll Bar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Locating Roll-Over Protection System (ROPS) Components

Courtesy of VOLVO CARS OF NORTH AMERICA.
