Programming driver position (LHD or RHD)

NOTE:

In order for a new ECC control module to function, the control module must be programmed for the driver position (LHD or RHD). A control module that has not been programmed will not operate at all and the green indicator LEDs in the REC and AC buttons will flash.

After programming with the driver position, the green LED in the A/C button will flash and continue to do so until the self-adjustment of the damper motor is complete.

Fig 1: Identifying Ignition Switch ON Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition on
Use the Programming function to read out and program the ECC control module. Programmable data is: left-hand drive or right-hand drive . If the control module was not previously programmed no data can be read off.
Read off the driver position. Note the value. If the programming is not correct, program in the correct version.

Fig 2: Identifying VCT2000
Courtesy of VOLVO CARS OF NORTH AMERICA.

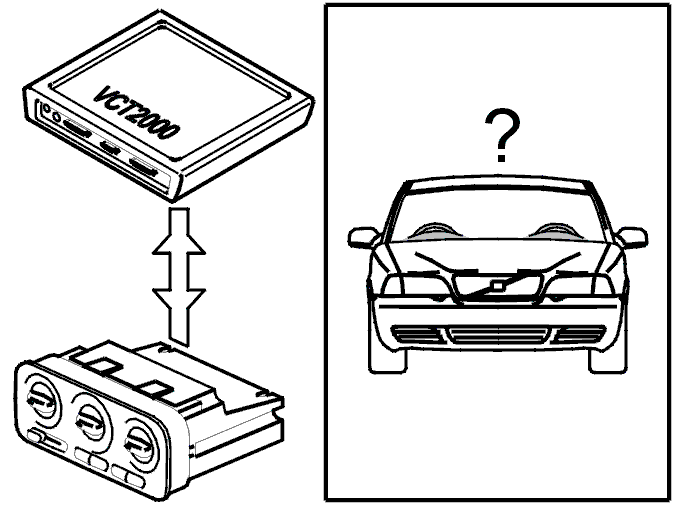

Fig 3: Programming Driver Position (LHD Or RHD)
Courtesy of VOLVO CARS OF NORTH AMERICA.

Any further programming to be carried out?

YES
Refer to Programming the engine type
NO
Refer to Information
