Installing the throttle body

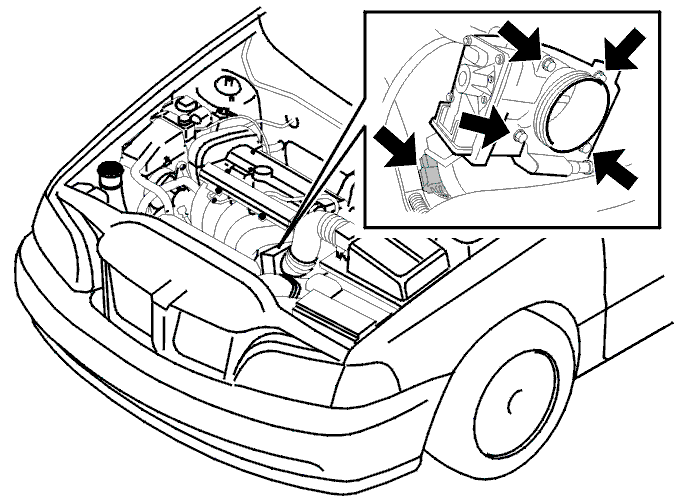

Fig 1: Identifying Throttle Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• starter motor, tighten with 40 Nm  against the transmission and 30 Nm  for the bracket against the engine block
• the new throttle body's connector with the cable on the outside of the starter motor bracket.

Secure the cable so that the risk of damage and contact separation is eliminated.

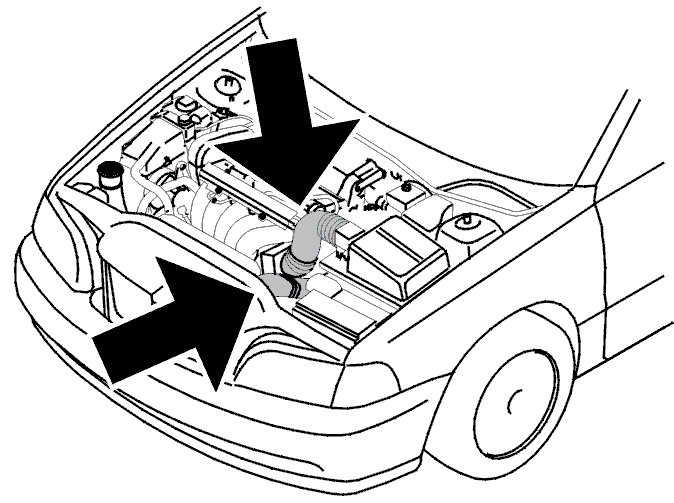

Fig 2: Identifying Intake Manifold Between Front Cover Plate And Air Cleaner (ACL) Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• new throttle body  with new gasket  . Tighten with 10 Nm
• intake manifold between air filter and throttle body and connected hoses
• the intake pipe between the front cover plate and the air cleaner (ACL).
• the cable to the battery's negative terminal.
