Lubricate the constant velocity joint thoroughly.

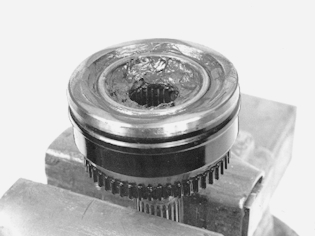

Fig 1: Lubricating Constant Velocity Joint
GLL108682Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a new lock ring to the joint's inner ring.

Apply grease behind the joint via the shaft hole in the inner ring.

Use grease as specified in Oil, grease etc
