Replacing Defective Control Module

Replacing defective control module





Fault tracing information
It is important to observe the following before proceeding:
- All tests for the symptom in question must have been carried out.
- No faults on components, connectors or leads have been found.

Have all tests been carried out without finding any faults?

Yes - YES

No - NO

------------------------

YES - Replacing defective control module

NO - ANOTHER TEST

-------------------------------------------------

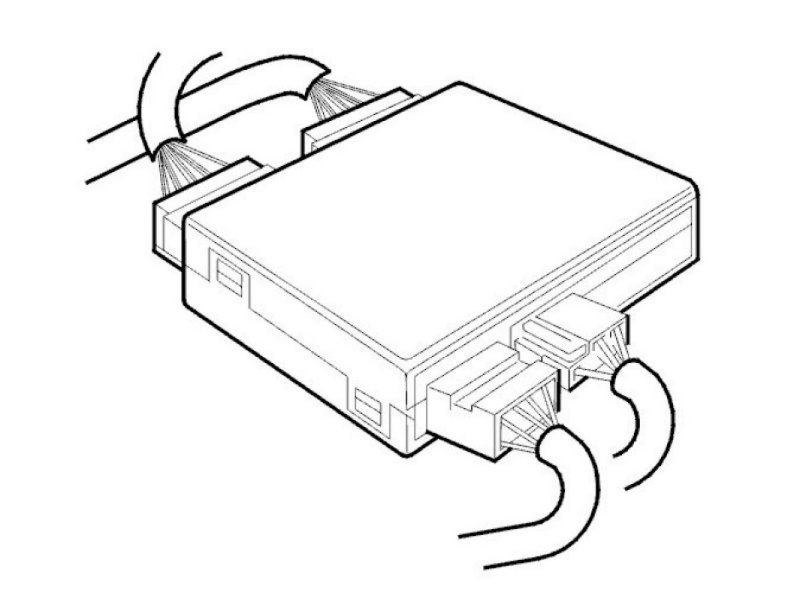

Replacing defective control module
- Try a new control module according to Control module, replace Control Module.





Press "Continue" when the fault has been repaired.

Continue - FAULT FOUND

-------------------------------------------------
