Electrical Distribution Fuse Box

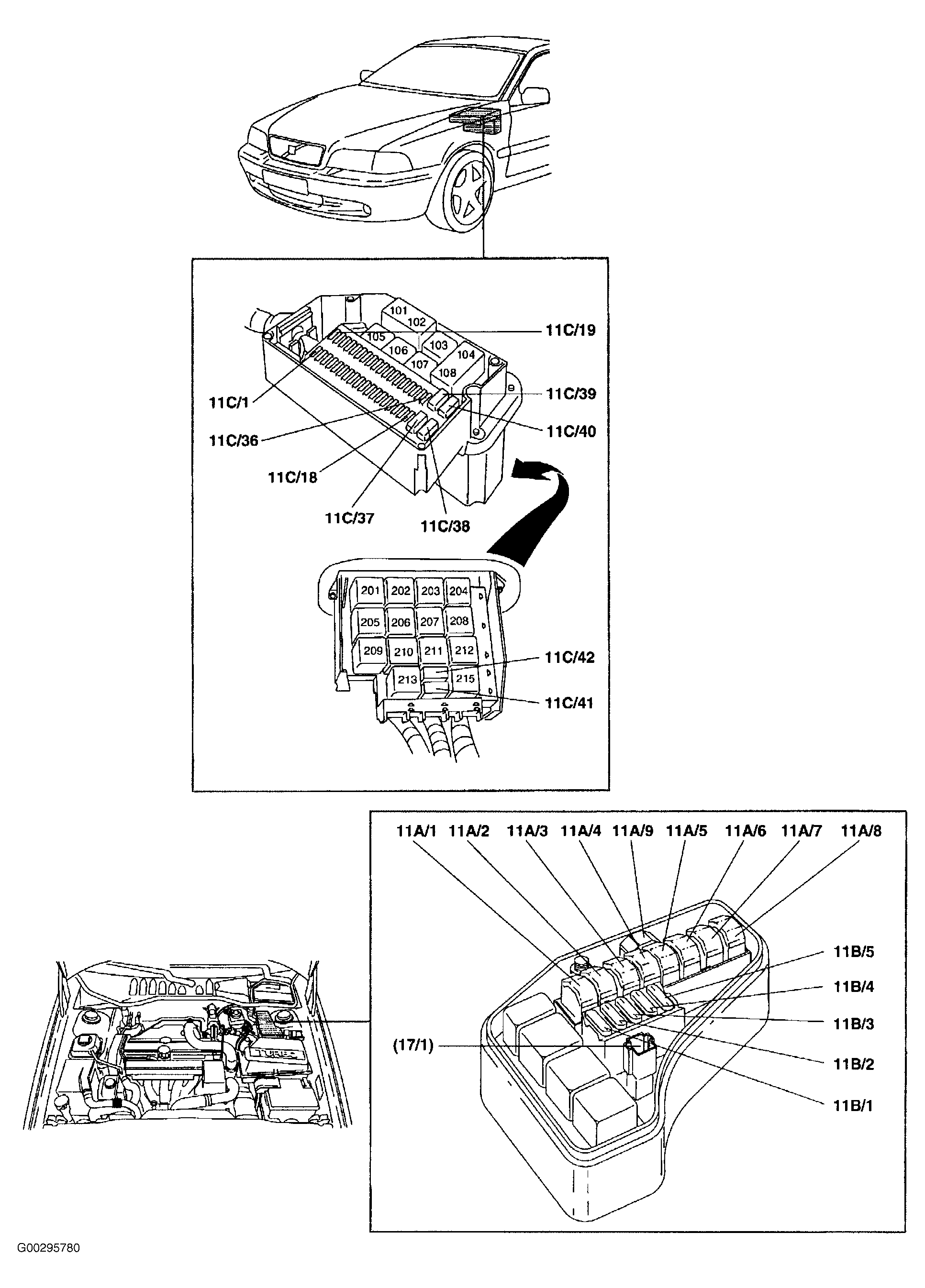

NOTE: For location of supplementary fuse box, see Figure .

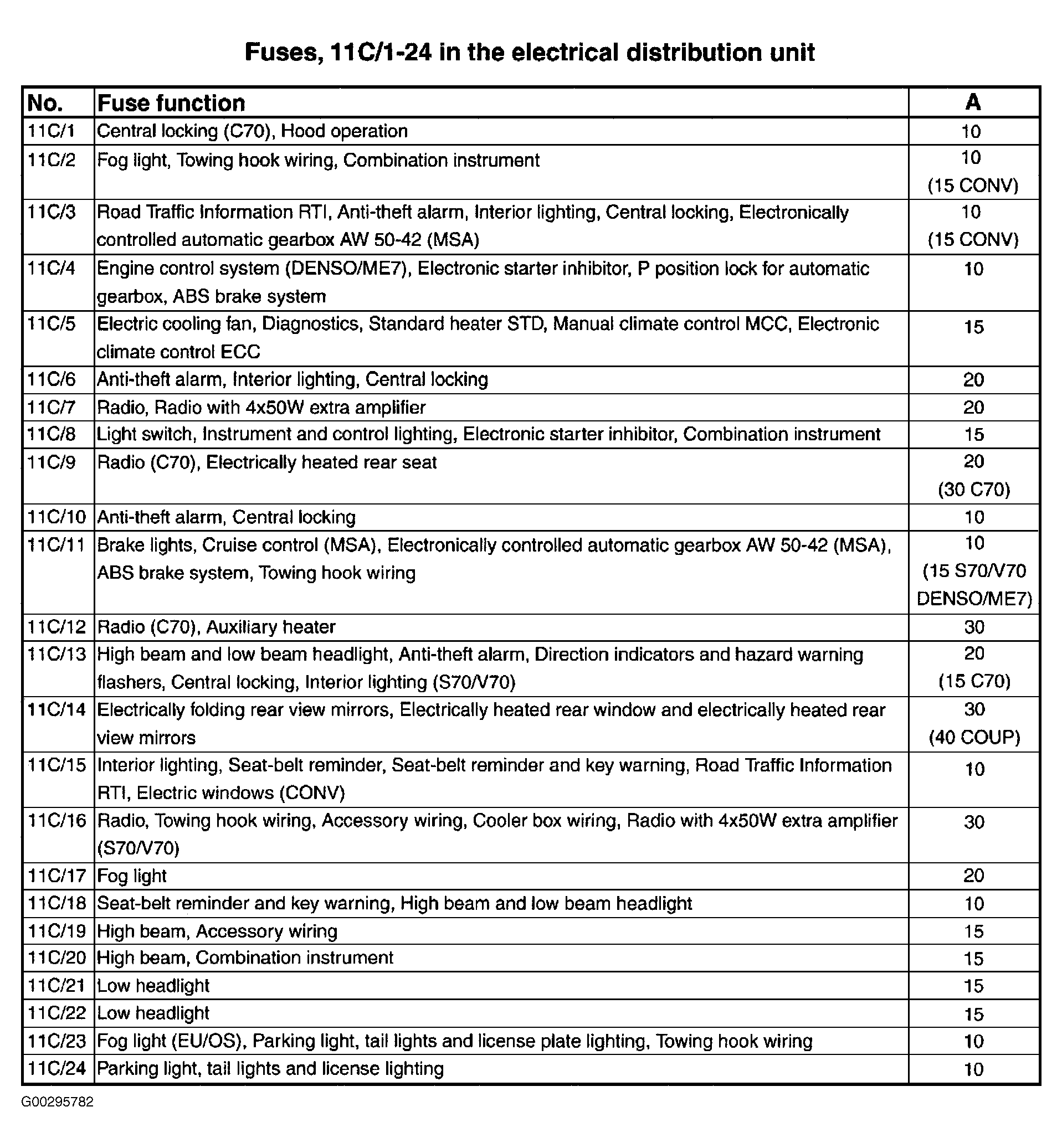

Fig 1: Electrical Distribution Fuse Box Fuses Legend (1 of 2)
G00295782Courtesy of VOLVO CARS OF NORTH AMERICA.

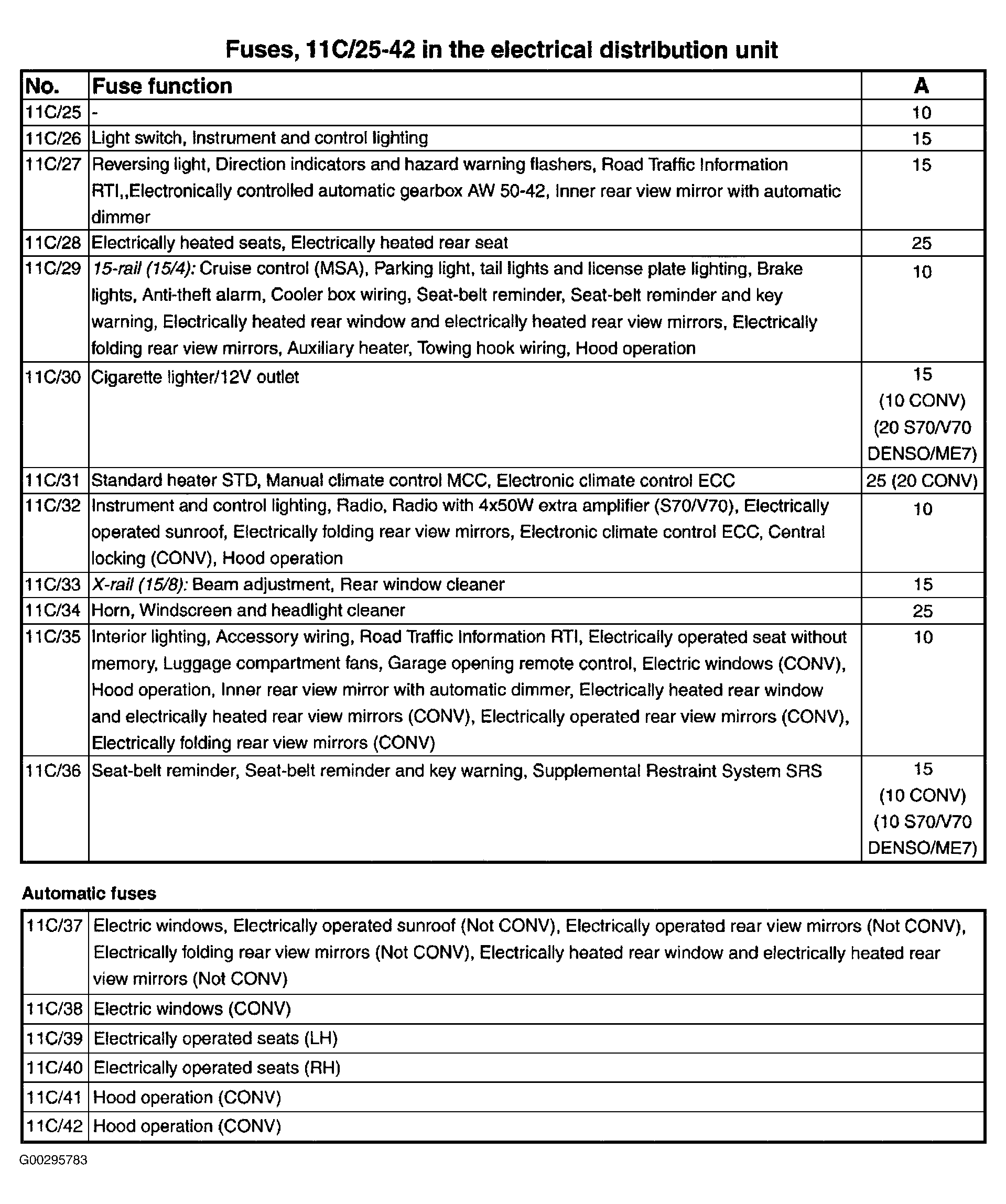

Fig 2: Electrical Distribution Fuse Box Fuses Legend (2 of 2)
G00295783Courtesy of VOLVO CARS OF NORTH AMERICA.
