Main Fuse Block

Fig 1: Locating Main & Electrical Distribution Fuse Boxes
G00295780Courtesy of VOLVO CARS OF NORTH AMERICA.

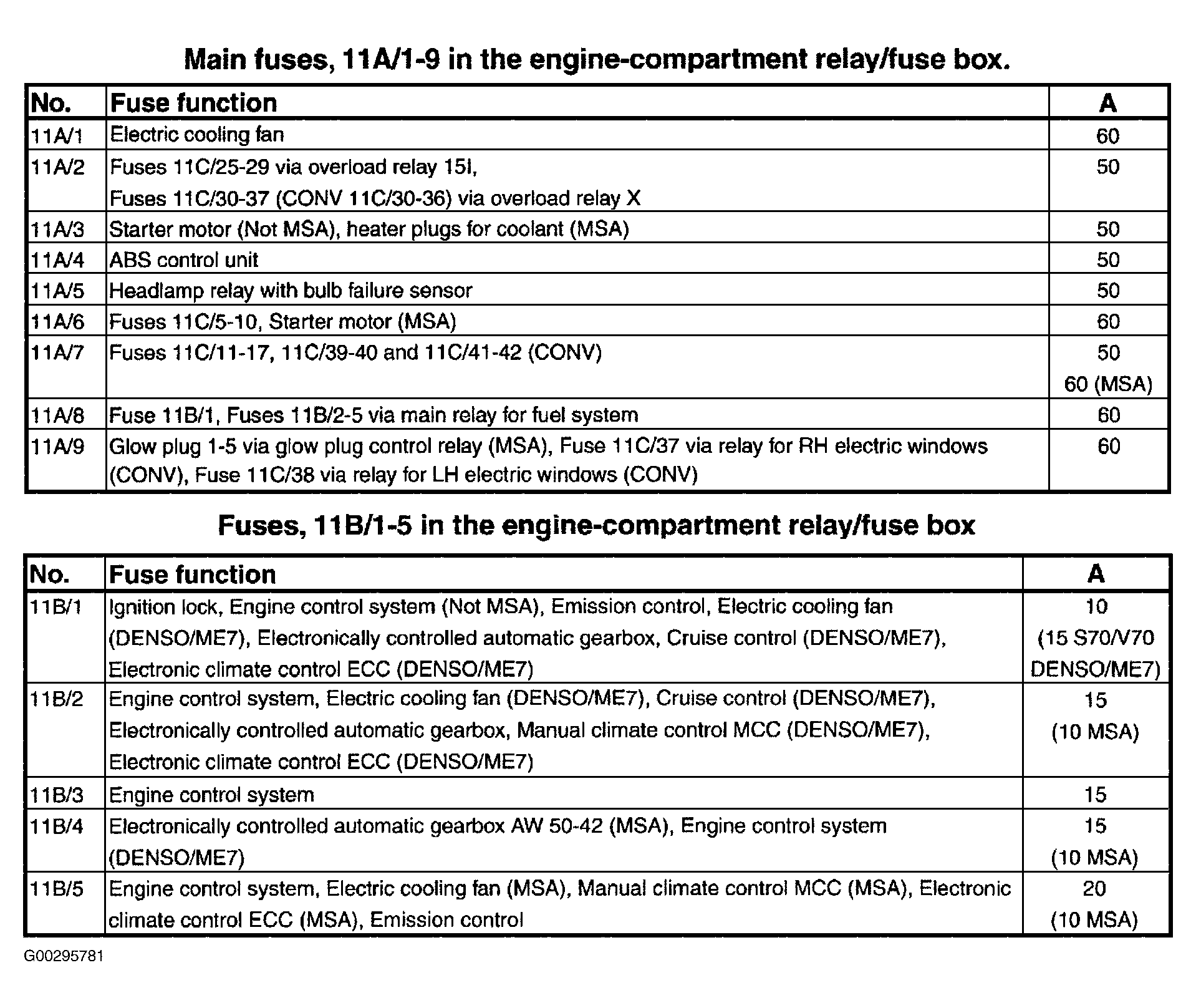

Fig 2: Main Fuse Box Fuses Legend
G00295781Courtesy of VOLVO CARS OF NORTH AMERICA.
