Assembling The Spring Strut

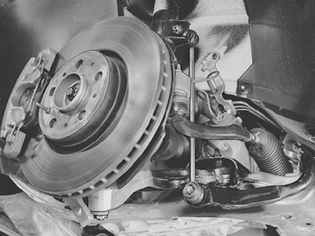

Fig 1: Identifying Wheel Hub Assembly And Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the tie rods. Use new nuts. Tighten to 70 Nm
• the link rod to the anti-roll bar. Use new nuts. Tighten to 50 Nm  . Counterhold with Tx27
• the bracket for the brake pipe to the body.

Tighten

• the nut for the ball joint and control arm. Tighten to 80 Nm  . Counterhold using Tx40
• the center screw in the drive shaft. Tighten to 50 Nm  .
