Component Locations

Fig 1: S70 & V70 DENSO Component Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Locating Data Link Connector

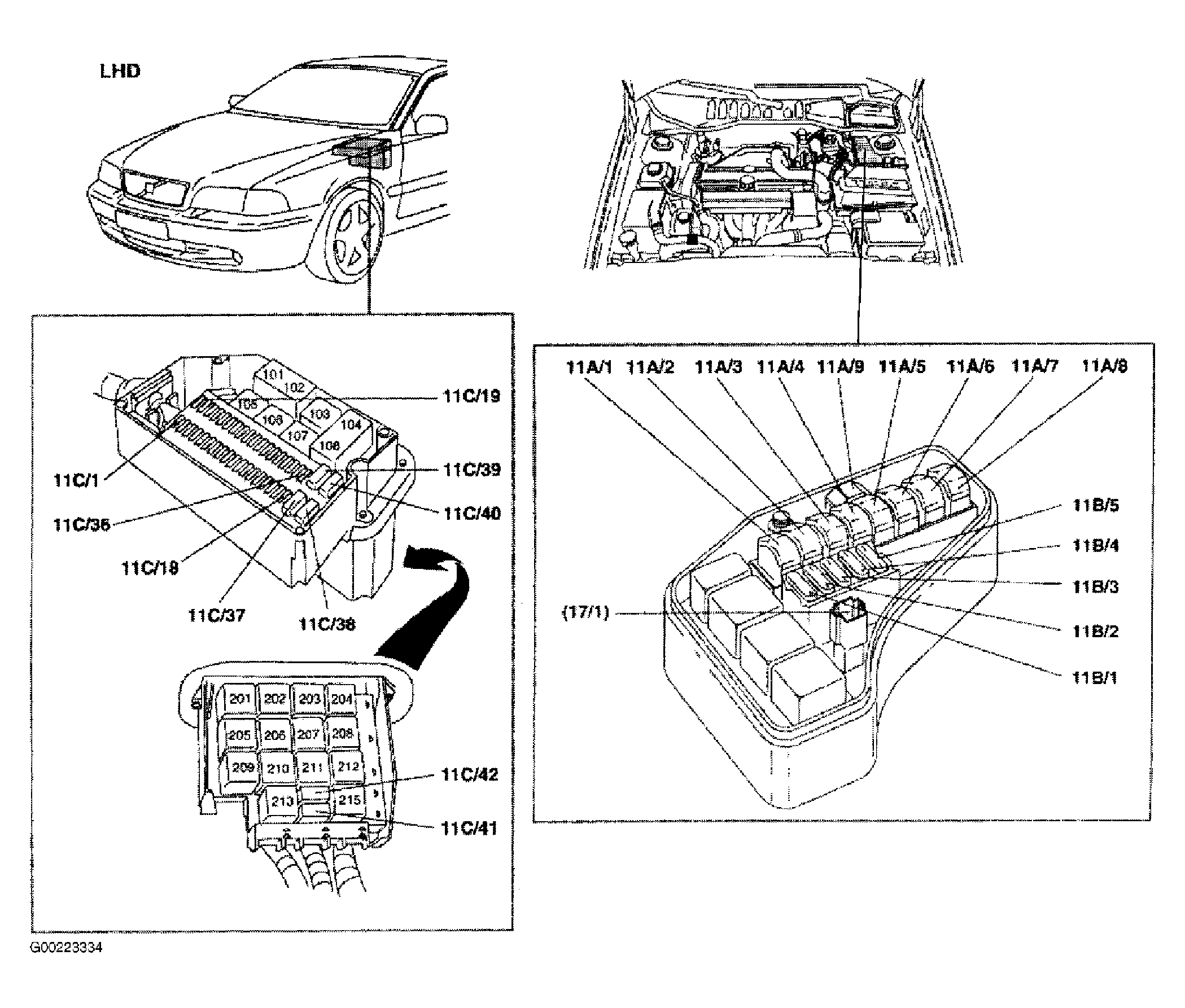

Fig 3: Locating Fuse/Relay Box & Central Electrical Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

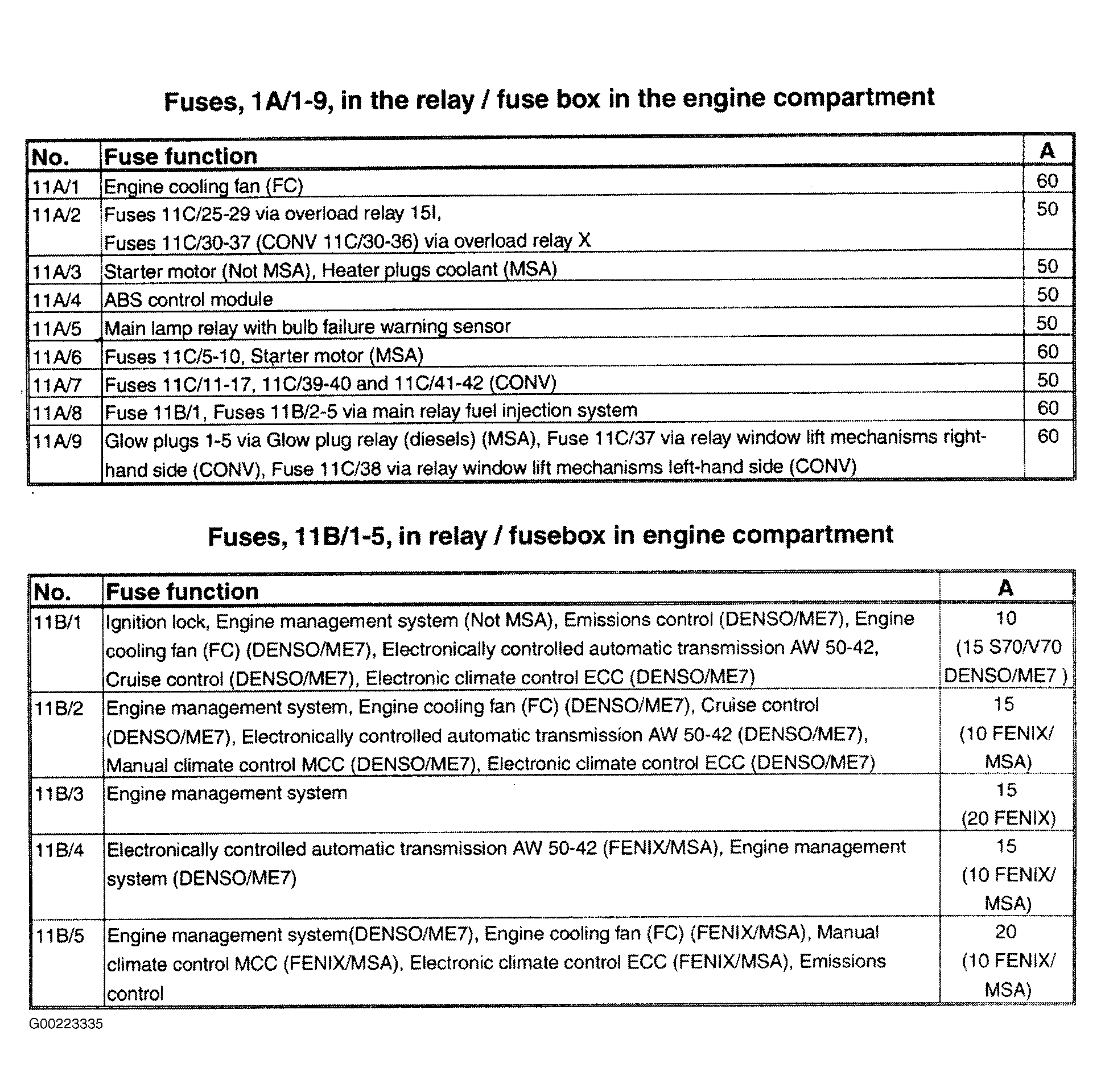

Fig 4: Identifying Engine Compartment Fuse/Relay Box Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For S70 and V70 FWD models, EVAP canister shut-off valve is located the EVAP canister. EVAP canister is located under right, rear section of vehicle. See Fig 5.

Fig 5: Locating EVAP Canister & EVAP Canister Shut-Off Valve (S70 & V70 Except AWD Models)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Locating EVAP Canister On Rear Subframe (V70 AWD Models)

Courtesy of VOLVO CARS OF NORTH AMERICA.

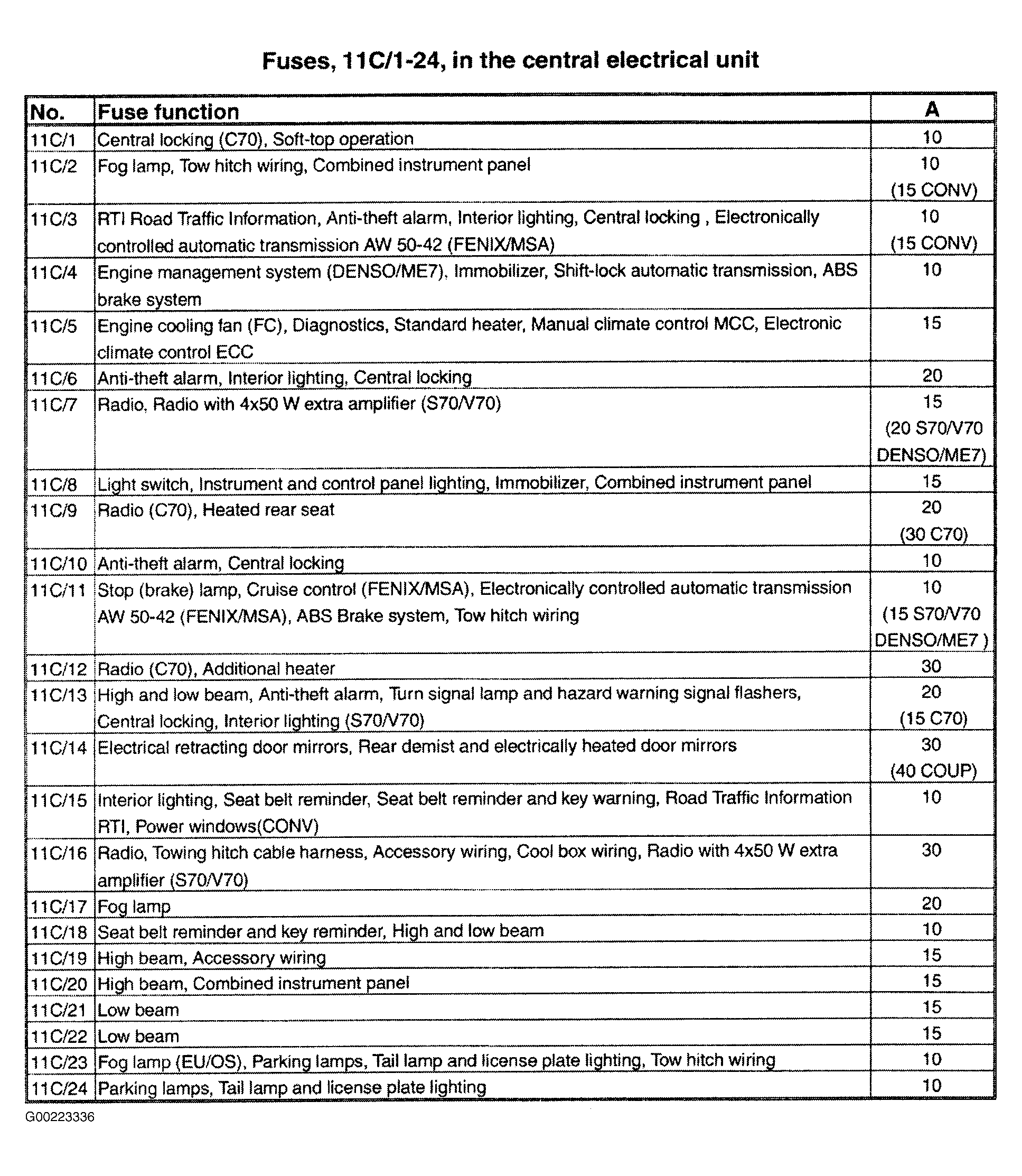

Fig 7: Identifying Central Electrical Unit Components (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

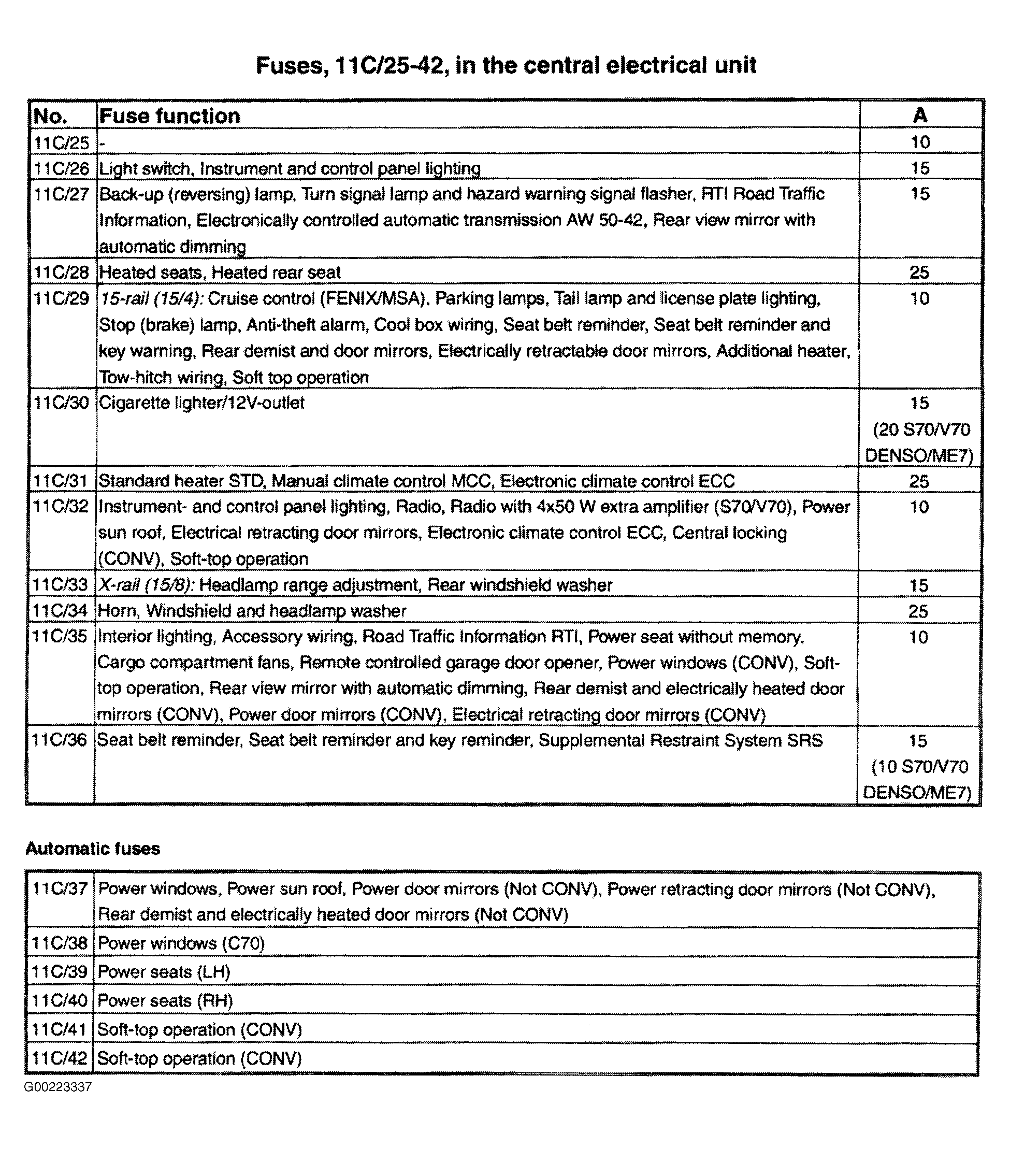

Fig 8: Identifying Central Electrical Unit Components (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Locating Cooling Fan Components (1999)

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For 2000 model year, components 11/50 and 11/51 are in-line fuses.

Fig 10: Locating Cooling Fan Components (2000)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 11: Cooling Fan Component Identification List (1 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 12: Cooling Fan Component Identification List (2 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 13: Cooling Fan Component Identification List (3 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 14: Cooling Fan Component Identification List (4 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.
