Disabling & Activating Air Bag System
WARNING:
NEVER disconnect crash sensor connector or standby power unit to disable SRS system.

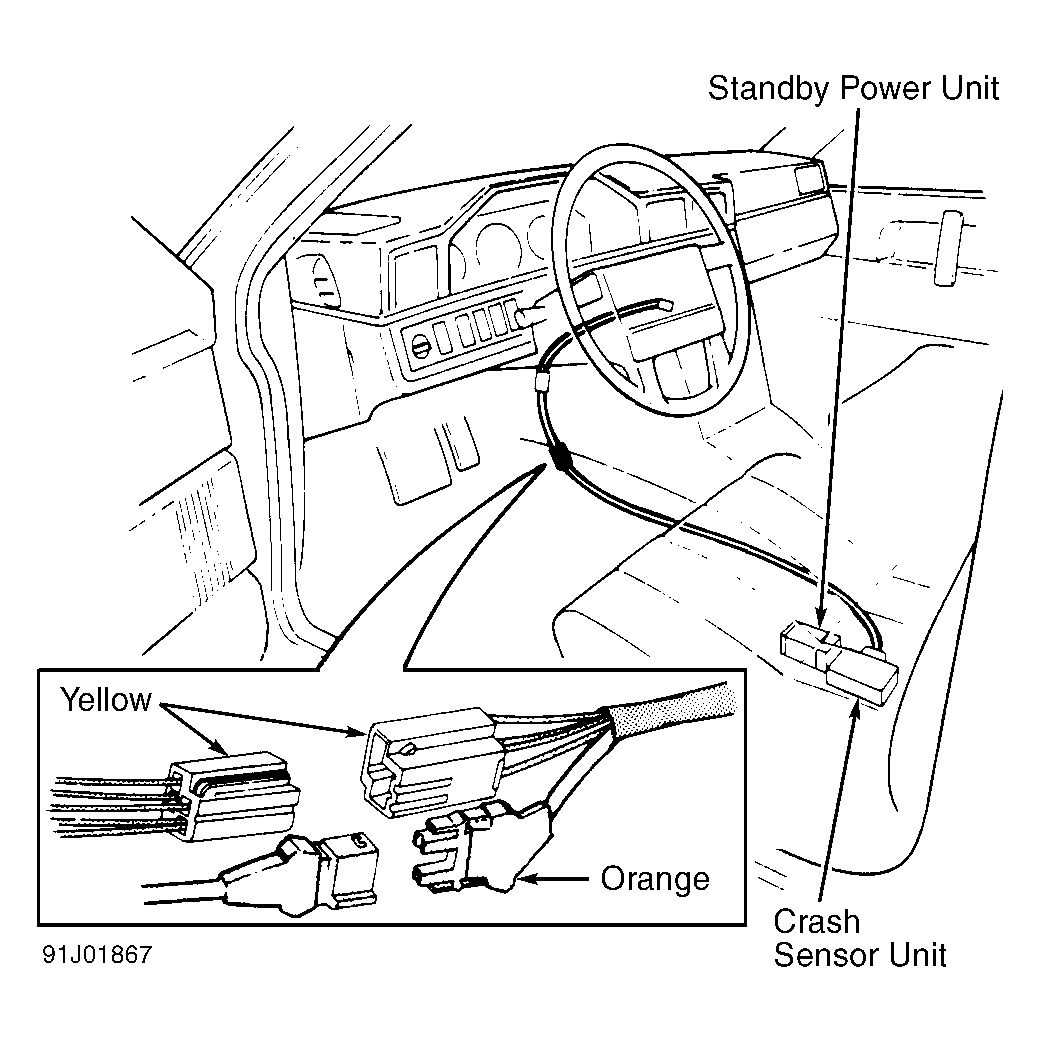

- Disconnect and shield negative battery cable. Locate and disconnect Orange and Yellow SRS connectors on driver's side of center console, under carpet. See Fig 1. DO NOT disconnect harness connection at crash sensor or air bag will deploy.
- After repairs, ensure all wiring and component connectors are reconnected. To activate air bag system, reconnect Orange and Yellow SRS connectors on driver's side of center console, under carpet. Reconnect negative battery cable. Turn ignition switch to ON position (engine not running). If no fault codes are present, SRS warning light should go out after 10 seconds.
