Installing components

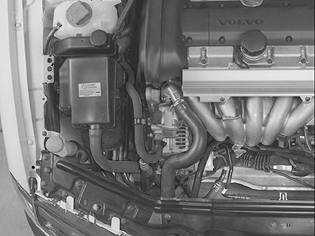

Fig 1: Identifying Expansion Tank & Servo Reservoir

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the front timing belt cover. Tighten
• the cover over the ignition coils
• the upper timing belt cover
• the auxiliaries belt
• the expansion tank
• the servo reservoir. Check that the hoses are correctly positioned
• the starter motor. Tighten the screws at the gearbox to 40 Nm  .

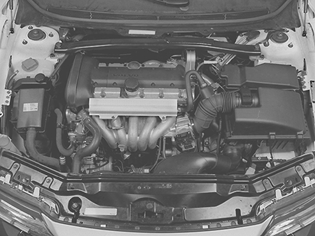

Fig 2: Identifying Engine Compartment Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the trigger wheel
• the camshaft position (CMP) sensor housing
• the upper and lower engine stabilizer brace
• the inlet hose between the air cleaner (ACL) and throttle body (TB)
• the plastic nuts for the cover in wing liner
• the wheel. See Installing wheels
• the engine stabilizer brace. Tighten the screws at the suspension turrets and the screw for motor bracket. See Tightening torque
• the cable to the battery negative terminal. First read Battery, disconnecting .

Test drive the car to check the function of the engine.

Fig 1: Identifying Engine Compartment Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the mixer. Tighten
• the camshaft position (CMP) sensor and new cover. Tighten
• the upper and lower engine stabilizer brace
• the cover over the ignition coils
• air cleaner (ACL) cover
• the inlet hose between the air cleaner (ACL) and throttle body (TB)

Check the engine compartment. Wipe the engine compartment clean.
