Intermittent fault

Check the power supply cable between transmission control module (TCM) #A57 (#A57) and vehicle speed sensor (VSS) connector #1 for an intermittent open-circuit according to Open-circuit, intermittent faults .

Check the signal cable between transmission control module (TCM) #A39 (#A39) and vehicle speed sensor (VSS) connector #2 for an intermittent open-circuit according to Open-circuit, intermittent faults .

Remedy as necessary.

Other information:

• To connect the breakout box, see Connecting the breakout box .
• To disconnect the transmission control module (TCM), see Replacing the gearbox control module (TCM) .
• For information about signals, see Signal description. Transmission control module (TCM) .

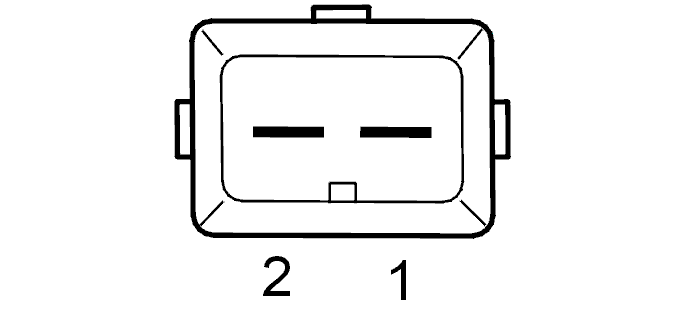

Fig 2: Identifying Vehicle Speed Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Automatic Transmission Control Module (TCM)

Courtesy of VOLVO CARS OF NORTH AMERICA.
