Install the inner ring in the bearing race.

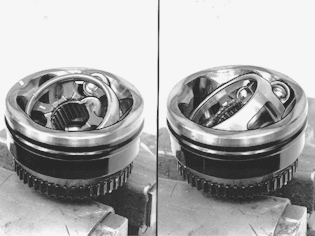

Fig 1: Identifying Ball Bearings
GLL108681Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

The location of the ball bearings.
