Wash the constant velocity joint components thoroughly.

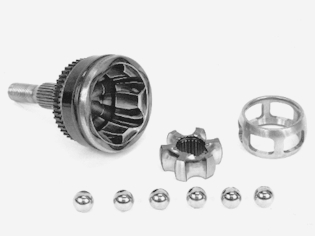

Fig 1: Identifying Constant Velocity Joint Components
GLL108680Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace the drive shaft assembly if any component is cracked or shows signs of wear.

NOTE:

Scratches and minor pitting of the ball tracks are permitted.
