Expose the outer constant velocity joint

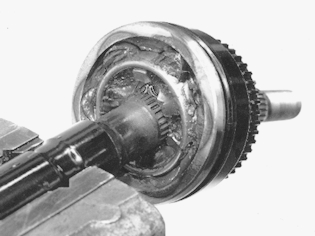

Fig 1: Identifying Outer Constant Velocity Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the clamps from the boot.
• Pull the boot off of the constant velocity joint.
• Wipe off the grease from the constant velocity joint.
• Fasten the drive shaft in a vise so that the recess for the lock ring points up.

Adapt a drift as described in Adapting a drift .
