Detaching the filler pipe

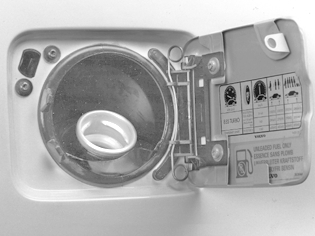

Fig 1: Identifying Filler Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the lock ring from the rubber gaiter.

Press the rubber gaiter and filler pipe into the wheel housing.
