Checking / setting turbo2 pressure regulator

Preparation

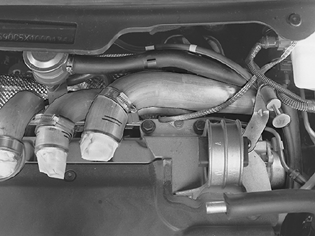

Remove

• the turbocharger (TC) intake pipe
• the charge air pipe from the turbocharger (TC)
• the heat deflector plate over the turbocharger (TC).

Connecting test equipment (found under: Checking / setting turbo1 pressure regulator)

• Connect test equipment. See Checking / setting turbo1 pressure regulator

Checking and adjusting push rod (found under: Checking / setting turbo1 pressure regulator)

• Check and adjust the push rod. See Checking / setting turbo1 pressure regulator .

Finishing

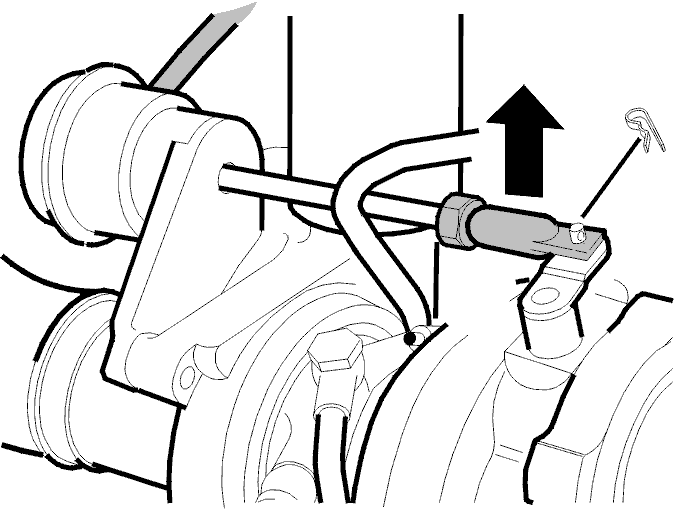

Install the split pin on the lever.

Tighten the locknut on the lever.

Remove the test equipment.

Install

• the heat deflector plate over the turbocharger (TC). Tighten to 25 Nm
• the charge air and intake pipes to the turbocharger (TC). Align against the plastic pipes and tighten.

Lower the car.

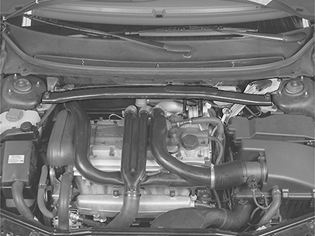

• the engine stabilizer brace between the suspension turrets. Tighten the screws at the suspension turret. Tighten to 50 Nm
• the screw for the engine stabilizer brace mounting on the engine. Tighten to 80 Nm  .

Press the plastic pipes into place and tighten the clamps.

• the mounting screws for plastic pipes and tighten
• the hoses from the pressure regulators to the T piece.

Function test

• Test drive the engine.
