Checking the governor

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.
• Vacuum pump removed.

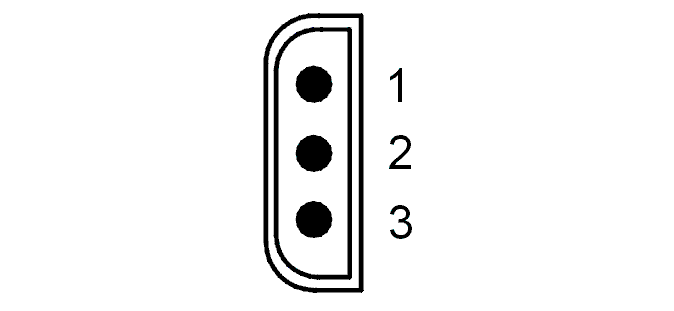

  Fig 3: Identifying Connector Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  • Temporarily connect a cable between vacuum pump pin terminal #3 and the battery positive terminal. Connect a cable between vacuum pump pin terminal #1 and the battery negative terminal. The governor should click.
  • Remove the temporarily connected cables.

Did the governor click?

• YES

  Refer to Checking for contact resistance and oxidation

• NO

  Refer to Replacing the component
